PEC09-2220F-S0012

Active

Bourns Inc.

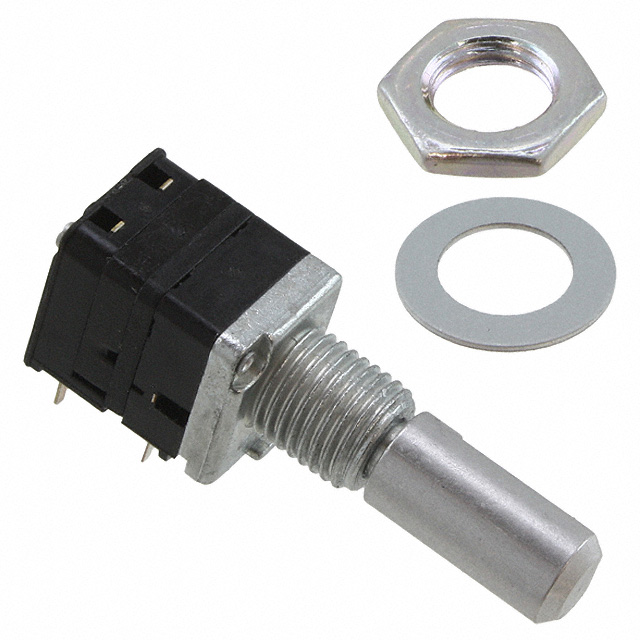

ROTARY ENCODER MECHANICAL 12PPR

Search across all available documentation for this part.

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 12PPR

Technical Specifications

Parameters and characteristics for this part

Specification	PEC09-2220F-S0012

Actuator Type	Flatted End
Actuator Type [diameter]	6 mm
Built in Switch	True
Detent	True
Encoder Type	Mechanical
Mounting Type	PCB Through Hole, Panel
Orientation	Right Angle
Output Type	Quadrature (Incremental)
Pulses per Revolution	12 pulses per revolution
Rotational Life (Cycles Min) [Min]	30K
Termination Style	PC Pin

Part	Orientation	Output Type	Encoder Type	Actuator Type [diameter]	Actuator Type	Termination Style	Pulses per Revolution	Mounting Type	Rotational Life (Cycles Min) [Min]
Bourns Inc. PEC09-2015F-N0015	Right Angle	Quadrature (Incremental)	Mechanical	6 mm	Flatted End	PC Pin	15	Panel PCB Through Hole	30K
Bourns Inc. PEC09-2315K-T0015
Bourns Inc. PEC09-2315F-N0015	Right Angle	Quadrature (Incremental)	Mechanical	6 mm	Flatted End	PC Pin	12 pulses per revolution	Panel PCB Through Hole	30K
Bourns Inc. PEC09-2120F-S0012	Right Angle	Quadrature (Incremental)	Mechanical	6 mm	Flatted End	PC Pin	12 pulses per revolution	Panel PCB Through Hole	30K
Bourns Inc. PEC09-2025K-N0015	Right Angle	Quadrature (Incremental)	Mechanical	6 mm	Knurled End	PC Pin	15	Panel PCB Through Hole	30K
Bourns Inc. PEC09-2120K-S0012
Bourns Inc. PEC09-2220F-S0012	Right Angle	Quadrature (Incremental)	Mechanical	6 mm	Flatted End	PC Pin	12 pulses per revolution	Panel PCB Through Hole	30K
Bourns Inc. PEC09-2215K-T0012	Right Angle	Quadrature (Incremental)	Mechanical	6 mm	Knurled End	PC Pin	12 pulses per revolution	Panel PCB Through Hole	30K
Bourns Inc. PEC09-2115F-S0012
Bourns Inc. PEC09-2115K-S0012	Right Angle	Quadrature (Incremental)	Mechanical	6 mm	Knurled End	PC Pin	12 pulses per revolution	Panel PCB Through Hole	30K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Mechanical 12 Quadrature (Incremental) Right Angle
