Phoenix Contact

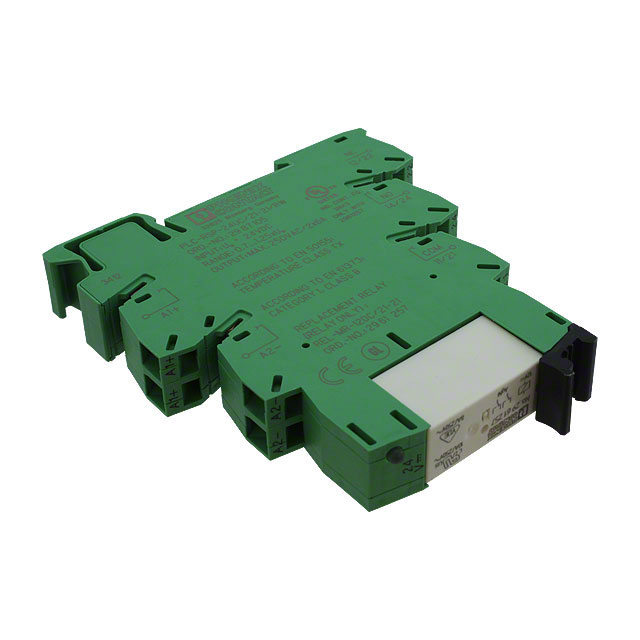

RELAY GEN PURPOSE DPDT 6A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 6A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2987105	29871 Series

Coil Current	12 mA	6 - 12 mA
Coil Resistance	2 kOhms	2 - 12 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	24 - 72 VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Contact Rating (Current)	6 A	6 A
Features	Lighted Indicator, Socket Included	Lighted Indicator, Socket Included
Mounting Type	DIN Rail	DIN Rail
Operate Time	8 ms	5 - 8 ms
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	11 ms	11 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Spring Terminal	Spring Terminal

RELAY GEN PURPOSE DPDT 6A 24V

Part	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Relay Type	Coil Current	Coil Type	Termination Style	Contact Rating (Current)	Features	Coil Resistance	Mounting Type	Operate Time	Coil Voltage	Contact Material	Switching Voltage
Phoenix Contact 2987105	11 ms	-40 °C	70 °C	DPDT (2 Form C)	General Purpose	12 mA	Non Latching	Spring Terminal	6 A	Lighted Indicator, Socket Included	2 kOhms	DIN Rail	8 ms	24 VDC	Silver Nickel (AgNi)	250 VAC, 250 VDC
Phoenix Contact 2987121	11 ms	-40 °C	70 °C	DPDT (2 Form C)	General Purpose	6 mA	Non Latching	Spring Terminal	6 A	Lighted Indicator	12 kOhms	DIN Rail	5 ms	72 VDC	Silver Nickel (AgNi)	250 VAC, 250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 24VDC Coil DIN Rail
