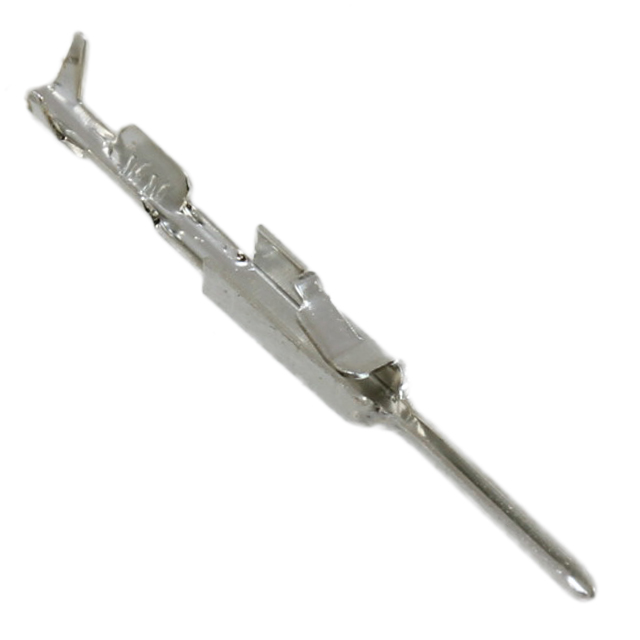

104506-3
ActiveTE Connectivity AMP Connectors
CONN PIN 28-32AWG CRIMP TIN-LEAD
Deep-Dive with AI
Search across all available documentation for this part.
104506-3
ActiveTE Connectivity AMP Connectors
CONN PIN 28-32AWG CRIMP TIN-LEAD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104506-3 | 104506 Series |
|---|---|---|
| Contact Finish | Tin-Lead | Gold, Tin, Tin-Lead |
| Contact Finish Thickness | 2.54 µm | 0.38 - 2.54 µm |
| Contact Finish Thickness | 100 µin | 15 - 100 µin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Wire Gauge [Max] | 32 AWG | 32 AWG |
| Wire Gauge [Min] | 27.5 AWG | 27.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 24000 | $ 0.28 | |
104506 Series
CONN PIN 28-32AWG CRIMP GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Pin or Socket | Contact Finish | Contact Termination |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104506-4 | 15 µin | 0.38 µm | 32 AWG | 27.5 AWG | Pin | Gold | Crimp |
TE Connectivity AMP Connectors 5-104506-3 | 100 µin | 2.54 µm | 32 AWG | 27.5 AWG | Pin | Tin | Crimp |
TE Connectivity AMP Connectors 104506-7 | 30 Áin | 0.76 Ám | 32 AWG | 27.5 AWG | Pin | Gold | Crimp |
TE Connectivity AMP Connectors 5-104506-4 | 15 µin | 0.38 µm | 32 AWG | 27.5 AWG | Pin | Gold | Crimp |
TE Connectivity AMP Connectors 5-104506-6 | 30 Áin | 0.76 Ám | 32 AWG | 27.5 AWG | Pin | Gold | Crimp |
TE Connectivity AMP Connectors 104506-3 | 100 µin | 2.54 µm | 32 AWG | 27.5 AWG | Pin | Tin-Lead | Crimp |
TE Connectivity AMP Connectors 104506-6 | 30 Áin | 0.76 Ám | 32 AWG | 27.5 AWG | Pin | Gold | Crimp |
TE Connectivity AMP Connectors 5-104506-5 | 15 µin | 0.38 µm | 32 AWG | 27.5 AWG | Pin | Gold | Crimp |
Description
General part information
104506 Series
Pin Contact Tin-Lead 28-32 AWG Crimp
Documents
Technical documentation and resources
No documents available
