1407-0-15-15-11-27-10-0 - 1407-0-15-15-11-27-10-0

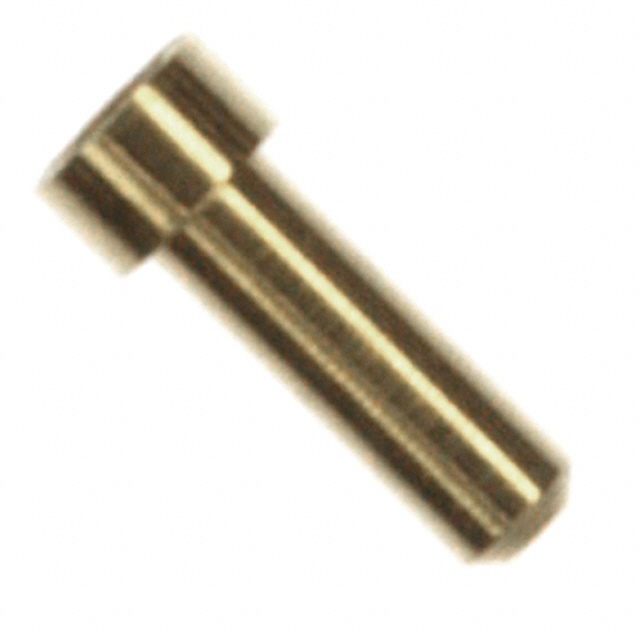

1407-0-15-15-11-27-10-0

Active
Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.020 SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
1407-0-15-15-11-27-10-0 - 1407-0-15-15-11-27-10-0

1407-0-15-15-11-27-10-0

Active
Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.020 SOLDER

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification1407-0-15-15-11-27-10-0
Accepts Pin Diameter [Max] [diameter]0.51 mm
Accepts Pin Diameter [Max] [diameter]0.02 "
Accepts Pin Diameter [Min] [diameter]0.015 "
Accepts Pin Diameter [Min] [diameter]0.38 mm
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
Contact MaterialBeryllium Copper
Flange Diameter [diameter]1.4 mm
Flange Diameter [diameter]0.055 in
Length - Overall [x]3.71 mm
Length - Overall [x]0.146 in
Mounting Hole Diameter [diameter]0.04 in
Mounting Hole Diameter [diameter]1.02 mm
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pin Hole Diameter [diameter]0.79 mm
Pin Hole Diameter [diameter]0.031 in
Socket Depth0.127 in
Socket Depth3.23 mm
Tail TypeNo Tail
TerminationSolder

1407-0 Series

PartContact Finish ThicknessContact Finish ThicknessPin Hole Diameter [diameter]Pin Hole Diameter [diameter]Accepts Pin Diameter [Min] [diameter]Accepts Pin Diameter [Max] [diameter]Accepts Pin Diameter [Max] [diameter]Accepts Pin Diameter [Min] [diameter]Flange Diameter [diameter]Flange Diameter [diameter]Operating Temperature [Min]Operating Temperature [Max]Length - Overall [x]Length - Overall [x]Contact FinishSocket DepthSocket DepthTail TypeMounting Hole Diameter [diameter]Mounting Hole Diameter [diameter]TerminationContact Material
Mill-Max Manufacturing Corp.
1407-0-15-15-11-27-10-0
0.76 Ám
30 Áin
0.79 mm
0.031 in
0.015 "
0.51 mm
0.02 "
0.38 mm
1.4 mm
0.055 in
-55 °C
125 °C
3.71 mm
0.146 in
Gold
0.127 in
3.23 mm
No Tail
0.04 in
1.02 mm
Solder
Beryllium Copper
Mill-Max Manufacturing Corp.
1407-0-15-01-11-27-10-0
0.76 Ám
30 Áin
0.79 mm
0.031 in
0.015 "
0.51 mm
0.02 "
0.38 mm
1.4 mm
0.055 in
-55 °C
125 °C
3.71 mm
0.146 in
Gold
0.127 in
3.23 mm
No Tail
0.04 in
1.02 mm
Solder
Beryllium Copper
Mill-Max Manufacturing Corp.
1407-0-15-80-11-14-10-0
0.25 Ám
10 Áin
0.79 mm
0.031 in
0.015 "
0.51 mm
0.02 "
0.38 mm
1.4 mm
0.055 in
-55 °C
125 °C
3.71 mm
0.146 in
Gold
0.127 in
3.23 mm
No Tail
0.04 in
1.02 mm
Solder
Beryllium Copper
Mill-Max Manufacturing Corp.
1407-0-15-01-11-02-10-0
2.54 µm
100 µin
0.79 mm
0.031 in
0.015 "
0.51 mm
0.02 "
0.38 mm
1.4 mm
0.055 in
-55 °C
125 °C
3.71 mm
0.146 in
Tin-Lead
0.127 in
3.23 mm
No Tail
0.04 in
1.02 mm
Solder
Beryllium Copper
Mill-Max Manufacturing Corp.
1407-0-15-80-11-84-10-0
2.54 µm
100 µin
0.79 mm
0.031 in
0.015 "
0.51 mm
0.02 "
0.38 mm
1.4 mm
0.055 in
-55 °C
125 °C
3.71 mm
0.146 in
Tin
0.127 in
3.23 mm
No Tail
0.04 in
1.02 mm
Solder
Beryllium Copper
Mill-Max Manufacturing Corp.
1407-0-15-80-11-27-10-0
0.76 Ám
30 Áin
0.79 mm
0.031 in
0.015 "
0.51 mm
0.02 "
0.38 mm
1.4 mm
0.055 in
-55 °C
125 °C
3.71 mm
0.146 in
Gold
0.127 in
3.23 mm
No Tail
0.04 in
1.02 mm
Solder
Beryllium Copper
Mill-Max Manufacturing Corp.
1407-0-15-15-11-14-10-0
0.25 Ám
10 Áin
0.79 mm
0.031 in
0.015 "
0.51 mm
0.02 "
0.38 mm
1.4 mm
0.055 in
-55 °C
125 °C
3.71 mm
0.146 in
Gold
0.127 in
3.23 mm
No Tail
0.04 in
1.02 mm
Solder
Beryllium Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.27
10$ 0.23
25$ 0.21
50$ 0.20
100$ 0.19
250$ 0.18
500$ 0.17
1000$ 0.16
2500$ 0.15

Description

General part information

1407-0 Series

Pin Receptacle Connector 0.015" ~ 0.020" (0.38mm ~ 0.51mm) No Tail Solder
