3430-0

Active

BRADY

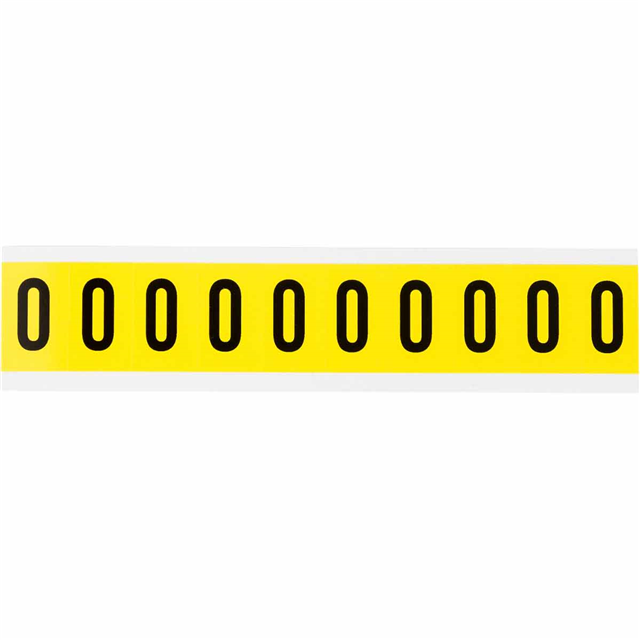

B498 N&L BLK/YEL 3430-0

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3430-0

Active

BRADY

B498 N&L BLK/YEL 3430-0

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3430-0	3430 Series

	-	-
Application Specifics	Alpha/Numeric	Directionality, Alpha/Numeric, Notice
Applications	General	General
Arrangement	Text Only	Symbol and Text, Text Only, Symbol Only
Color - Background	Yellow	Yellow
Color - Legend	Black	Black
Features	Corrosion Resistant, Weather Resistant, Chemical Resistant, Humidity Resistant, Abrasion Resistant, UV Resistant	Corrosion Resistant, Weather Resistant, Chemical Resistant, Humidity Resistant, Abrasion Resistant, UV Resistant
Language	English	English
Legend (Symbol Only)	False	False
Legend (Symbol Only)	-	Directional Arrow
Legend (Text)	0	0 - 9
Legend (Text)	-	Arrow Symbol, F, 1, No Text, I, B, C, P, A, E, H, 3, 7, 5, D
Legend (Text)	-	True
Length	38.1 mm	38 - 38.1 mm
Length		-
Length	1.5 "	1.496 - 1.5 "
Material - Body	Vinyl Cloth	Vinyl Cloth
Mounting Type	Adhesive	Adhesive
Print Type	Pre-Printed	Pre-Printed
Ratings	CSA, UL Rated	CSA, UL Rated, UL
Shape	Rectangle	Rectangle
Width	-	22 mm
Width	-	0.866 "
Width [y]	22.23 mm	22.23 mm
Width [y]	0.875 in	0.875 in

3430 Series

B498 N&L BLK/YEL 3430-ARO

Part	Arrangement	Legend (Text)	Shape	Color - Legend	Width [y]	Width [y]	Print Type	Features	Color - Background	Ratings	Length	Length	Applications	Material - Body	Application Specifics	Mounting Type	Legend (Symbol Only)	Language	Legend (Text)	Width [x]	Width [x]
BRADY 3430-ARO	Symbol and Text	Arrow Symbol	Rectangle	Black	22.23 mm	0.875 in	Pre-Printed	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Yellow	CSA, UL Rated	38.1 mm	1.5 "	General	Vinyl Cloth	Directionality	Adhesive	Directional Arrow
BRADY 3430-9	Text Only		Rectangle	Black	22.23 mm	0.875 in	Pre-Printed	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Yellow	CSA, UL Rated	38.1 mm	1.5 "	General	Vinyl Cloth	Alpha/Numeric	Adhesive		English	9
BRADY 3430-F	Text Only	F	Rectangle	Black	22.23 mm	0.875 in	Pre-Printed	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Yellow	CSA, UL Rated	38.1 mm	1.5 "	General	Vinyl Cloth	Alpha/Numeric	Adhesive		English
BRADY 3430-1	Text Only	1	Rectangle	Black	22.23 mm	0.875 in	Pre-Printed	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Yellow	CSA, UL Rated	38.1 mm	1.5 "	General	Vinyl Cloth	Alpha/Numeric	Adhesive		English
BRADY 3430-# KIT	Symbol Only	No Text	Rectangle	Black			Pre-Printed	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Yellow	CSA, UL Rated	38 mm	1.496 in	General	Vinyl Cloth	Alpha/Numeric	Adhesive		English		22 mm	0.866 "
BRADY 3430-0	Text Only		Rectangle	Black	22.23 mm	0.875 in	Pre-Printed	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Yellow	CSA, UL Rated	38.1 mm	1.5 "	General	Vinyl Cloth	Alpha/Numeric	Adhesive		English	0
BRADY 3430-4	Text Only		Rectangle	Black	22.23 mm	0.875 in	Pre-Printed	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Yellow	CSA, UL Rated	38.1 mm	1.5 "	General	Vinyl Cloth	Alpha/Numeric	Adhesive		English	4
BRADY 3430-I	Text Only	I	Rectangle	Black	22.23 mm	0.875 in	Pre-Printed	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Yellow	CSA, UL Rated	38.1 mm	1.5 "	General	Vinyl Cloth	Alpha/Numeric	Adhesive		English
BRADY 3430-B	Text Only	B	Rectangle	Black	22.23 mm	0.875 in	Pre-Printed	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Yellow	CSA, UL Rated	38.1 mm	1.5 "	General	Vinyl Cloth	Alpha/Numeric	Adhesive		English
BRADY 3430-C	Text Only	C	Rectangle	Black	22.23 mm	0.875 in	Pre-Printed	Abrasion Resistant, Chemical Resistant, Corrosion Resistant, Humidity Resistant, UV Resistant, Weather Resistant	Yellow	CSA, UL Rated	38.1 mm	1.5 "	General	Vinyl Cloth	Alpha/Numeric	Adhesive		English

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.09
		1	$ 6.93
		25	$ 11.89

Description

General part information

3430 Series

B498 N&L BLK/YEL 3430-0

Documents

Technical documentation and resources
