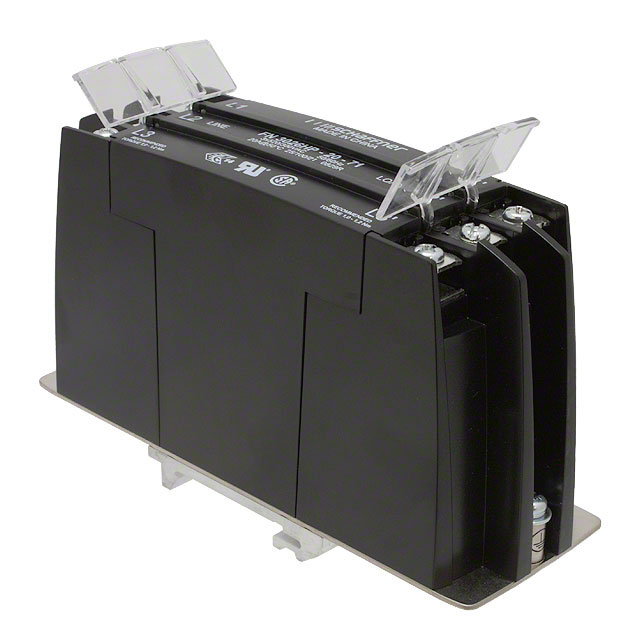

FN3026HP-20-71

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 20A DIN RAIL

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 20A DIN RAIL

Technical Specifications

Parameters and characteristics for this part

Specification	FN3026HP-20-71

Applications	General Purpose
Approval Agency	CSA, ENEC, UR
Configuration	Single Stage
Current	20 A
Filter Type	Three Phase (Delta)
Frequency - Operating	60 Hz
Mounting Type	DIN Rail
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Ground/Neutral)	300 V
Voltage - Rated AC (Phase to Phase)	520 V

Part	Operating Temperature [custom]	Configuration	Applications	Termination Style	Filter Type	Mounting Type	Voltage - Rated AC (Phase to Ground/Neutral)	Approval Agency	Current	Frequency - Operating	Voltage - Rated AC (Phase to Phase)
TE Connectivity Raychem Cable Protection FN3026HP-10-71	-25 °C 100 °C	Single Stage	General Purpose	Terminal Block	Three Phase (Delta)	DIN Rail	300 V	CSA ENEC UR	10 A	60 Hz	520 V
TE Connectivity Raychem Cable Protection FN3026HP-20-71	-25 °C 100 °C	Single Stage	General Purpose	Terminal Block	Three Phase (Delta)	DIN Rail	300 V	CSA ENEC UR	20 A	60 Hz	520 V
TE Connectivity Raychem Cable Protection FN3026HP-30-71	-25 °C 100 °C	Single Stage	General Purpose	Terminal Block	Three Phase (Delta)	DIN Rail	300 V	CSA ENEC UR	30 A	60 Hz	520 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Delta) EMC/EMI Line Filter 20 A 60Hz Single Stage Terminal Block
