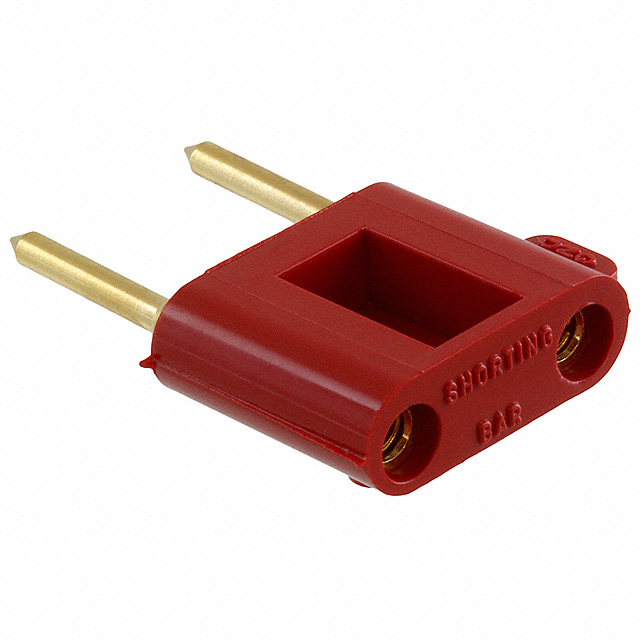

3452-2

Active

Pomona Electronics

CONN TIP JACK/TIP PLUG F/M 2 POS ST THRU-HOLE 2 PORT

Search across all available documentation for this part.

Active

Pomona Electronics

CONN TIP JACK/TIP PLUG F/M 2 POS ST THRU-HOLE 2 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	3452-2

Body Material	Acrylonitrile Butadiene Styrene (ABS)
Color	Red
Contact Finish	Gold
Contact Material	Beryllium Copper
Features	Shorting Bar
Gender	Male
Insulation	Non-Mating End Insulated
Mounting Type	Free Hanging (In-Line)
Operating Temperature	50 °C
Plug/Mating Plug Diameter	Standard Tip
Termination	Solderless
Type	Stackable, Tip Plug, Double

Part	Contact Material	Gender	Mounting Type	Plug/Mating Plug Diameter	Insulation	Operating Temperature	Color	Termination	Contact Finish	Features	Type	Body Material
Pomona Electronics 3452-2	Beryllium Copper	Male	Free Hanging (In-Line)	Standard Tip	Non-Mating End Insulated	50 °C	Red	Solderless	Gold	Shorting Bar	Double Stackable Tip Plug	Acrylonitrile Butadiene Styrene (ABS)
Pomona Electronics 3452-0#	Beryllium Copper	Male	Free Hanging (In-Line)	Standard Tip	Non-Mating End Insulated	50 °C	Black	Solderless	Gold	Shorting Bar	Double Stackable Tip Plug	Acrylonitrile Butadiene Styrene (ABS)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tip Plug, Double, Stackable Connector Standard Tip Solderless Red
