AR 20-HZL/07-TT
ActiveAssmann WSW Components

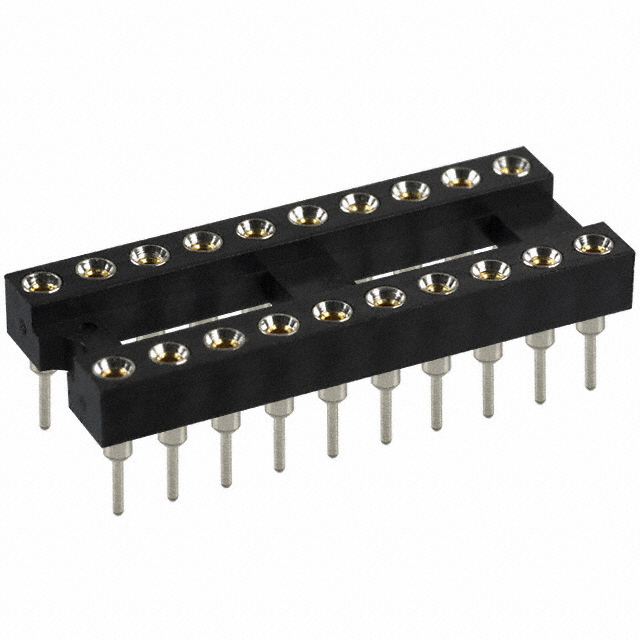

CONN IC DIP SOCKET 20POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AR 20-HZL/07-TT
ActiveAssmann WSW Components
CONN IC DIP SOCKET 20POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AR 20-HZL/07-TT |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Contact Resistance | 4 mOhm |
| Current Rating (Amps) | 3 A |
| Features | Open Frame |
| Housing Material | Thermoplastic, Polyester |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 20 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 20010 | $ 0.99 | |
Description
General part information
AR20-HZ Series
20 (2 x 10) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
