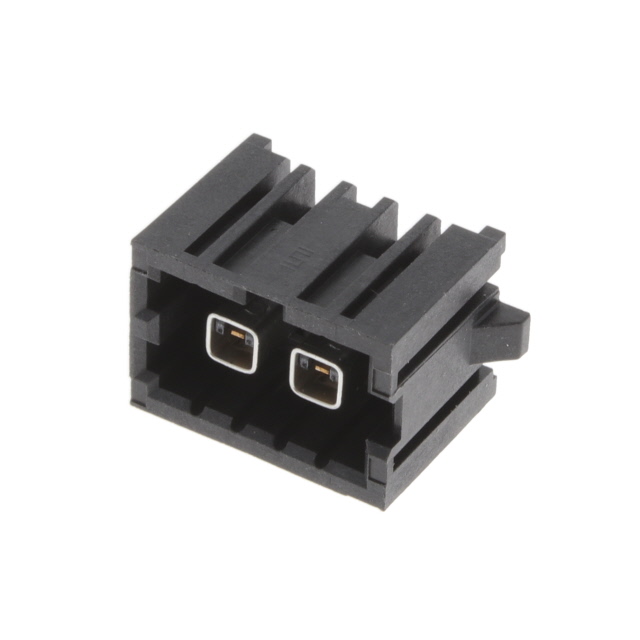

IP5-02-05.0-L-S-1-TR
ActiveSamtec Inc.
IP5 TERMINAL ARRAY ASSEMBLY
Deep-Dive with AI
Search across all available documentation for this part.
IP5-02-05.0-L-S-1-TR
ActiveSamtec Inc.
IP5 TERMINAL ARRAY ASSEMBLY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IP5-02-05.0-L-S-1-TR |
|---|---|
| Body Material | Nylon, Polyamide (PA) |
| Center Contact Material | Copper Alloy |
| Center Contact Plating | Gold |
| Connector Style | Coaxial |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Frequency - Max [Max] | 9.5 GHz |
| Housing Color | Black |
| Impedance | 50 Ohms |
| Mounting Type | Through Hole |
| Number of Ports | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Voltage Rating | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.90 | |
| 10 | $ 5.62 | |||
| 25 | $ 5.35 | |||
| 50 | $ 5.13 | |||
| Digi-Reel® | 1 | $ 5.90 | ||
| 10 | $ 5.62 | |||
| 25 | $ 5.35 | |||
| 50 | $ 5.13 | |||
| Tape & Reel (TR) | 200 | $ 5.13 | ||
Description
General part information
IP5-02 Series
Coaxial Connector Plug, Female Socket 50 Ohms Through Hole Solder
