FI-S8P-HFE-E1500

Active

JAE Electronics

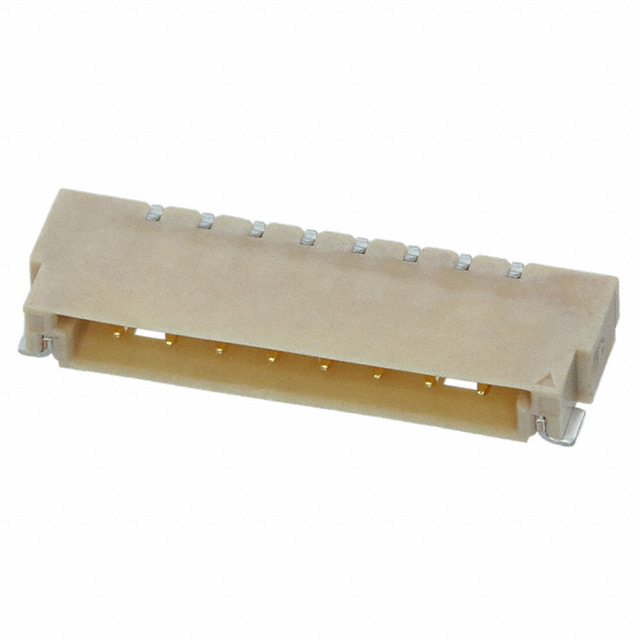

CONN HEADER SMD R/A 8POS 1.25MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER SMD R/A 8POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	FI-S8P-HFE-E1500

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin or Tin-Alloy
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Friction Lock
Features	Solder Retention
Insulation Color	Beige
Insulation Height	1.8 mm
Insulation Height	0.071 "
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	200 V

Part	Material Flammability Rating	Mounting Type	Contact Finish - Mating	Fastening Type	Number of Positions	Voltage Rating	Connector Type	Style	Shrouding	Contact Finish - Post	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Termination	Number of Positions Loaded	Contact Material	Number of Rows	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Features	Color	Note	Insulation Material	Pitch [x]	Pitch [x]	Contact Termination
JAE Electronics FI-S8P-HFE-E1500	UL94 V-0	Surface Mount Right Angle	Gold	Friction Lock	8	200 V	Receptacle	Board to Cable/Wire	Shrouded - 4 Wall	Tin or Tin-Alloy	Male Pin	-40 °C	80 C	Square	Solder	All	Copper Alloy	1	Beige	1.25 mm	0.049 in	1.8 mm	0.071 "	1 A	Solder Retention
JAE Electronics FI-S8S		Free Hanging (In-Line)		Friction Lock	8		Plug				Female Socket							1								Black	Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	0.049 in	1.25 mm	Crimp
JAE Electronics FI-S8P-HFE	UL94 V-0	Surface Mount Right Angle	Gold	Friction Lock	8	200 V	Receptacle	Board to Cable/Wire	Shrouded - 4 Wall	Tin or Tin-Alloy	Male Pin	-40 °C	80 C	Square	Solder	All	Copper Alloy	1	Beige	1.25 mm	0.049 in	1.8 mm	0.071 "	1 A	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 8 position 0.049" (1.25mm)

Technical documentation and resources

No documents available
