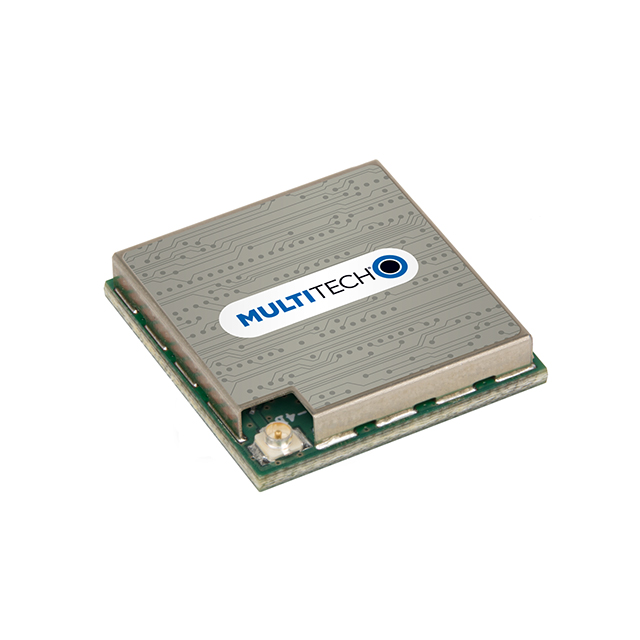

Specification	MTXDOT-NA1-A00-1

Frequency	915 MHz
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Module
Power - Output	19 dBm
Protocol	LoRa®
RF Family/Standard	General ISM < 1GHz
Sensitivity	-137 dBm
Serial Interfaces	UART, I2C, SPI

MTXDOT Series

Part	Protocol	RF Family/Standard	Package / Case	Frequency	Operating Temperature (Min)	Operating Temperature (Max)	Serial Interfaces	Sensitivity	Power - Output	Mounting Type	Memory Size	Memory Type	Memory Size (Flash)	Frequency (Max)	Frequency (Min)	Antenna Type	Data Rate
Multi-Tech Systems Inc. MTXDOT-NA1-A00-1	LoRa®	General ISM < 1GHz	Module	915 MHz	-40 °C	85 °C	I2C SPI UART	-137 dBm	19 dBm	Surface Mount
Multi-Tech Systems Inc. MTXDOT-EU1-A00-1	LoRa®	General ISM < 1GHz	Module	868 MHz	-40 °C	85 °C	I2C SPI UART	-137 dBm	14 dBm	Surface Mount	32 kB	Flash RAM	256 KB
Multi-Tech Systems Inc. MTXDOT-EU1-IN1-A00-100	LoRa®	General ISM < 1GHz	Module		-40 °C	85 °C	I2C SPI UART	-137 dBm	14 dBm	Surface Mount	32 kB	Flash RAM	256 KB	1.02 GHz	860 MHz	Antenna Not Included U.FL	20 kbps
Multi-Tech Systems Inc. MTXDOT-NA1-A00-100	LoRa®	General ISM < 1GHz	Module	915 MHz	-40 °C	85 °C	I2C SPI UART	-137 dBm	19 dBm	Surface Mount
Multi-Tech Systems Inc. MTXDOT-AS1-A01-100	LoRa®	General ISM < 1GHz	Module		-40 °C	85 °C	I2C SPI			Surface Mount	32 kB	Flash RAM	256 KB	1.02 GHz	860 MHz	Integrated Trace	293 kbps
Multi-Tech Systems Inc. MTXDOT-EU1-IN1-A00-1	LoRa®	General ISM < 1GHz	Module		-40 °C	85 °C	I2C SPI UART	-137 dBm	14 dBm	Surface Mount	32 kB	Flash RAM	256 KB	1.02 GHz	860 MHz	Antenna Not Included U.FL	20 kbps
Multi-Tech Systems Inc. MTXDOT-NA1-A01-100	LoRa®	General ISM < 1GHz	Module	915 MHz	-40 °C	85 °C	I2C SPI UART	-137 dBm	19 dBm	Surface Mount
Multi-Tech Systems Inc. MTXDOT-KR1-A00-1	LoRa®	General ISM < 1GHz	Module		-40 °C	85 °C	I2C SPI UART			Surface Mount	32 kB	Flash RAM	256 KB	1.02 GHz	860 MHz		20 kbps
Multi-Tech Systems Inc. MTXDOT-EU1-A01-100	LoRa®	General ISM < 1GHz	Module	868 MHz	-40 °C	85 °C	I2C SPI UART	-137 dBm	14 dBm	Surface Mount	32 kB	Flash RAM	256 KB
Multi-Tech Systems Inc. MTXDOT-EU1-A00-100	LoRa®	General ISM < 1GHz	Module	868 MHz	-40 °C	85 °C	I2C SPI UART	-137 dBm	14 dBm	Surface Mount	32 kB	Flash RAM	256 KB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

xDot™ Developer Guide

MTXDOT-NA1-A00-1 | Datasheet
