MCP73833EV
ActiveMicrochip Technology

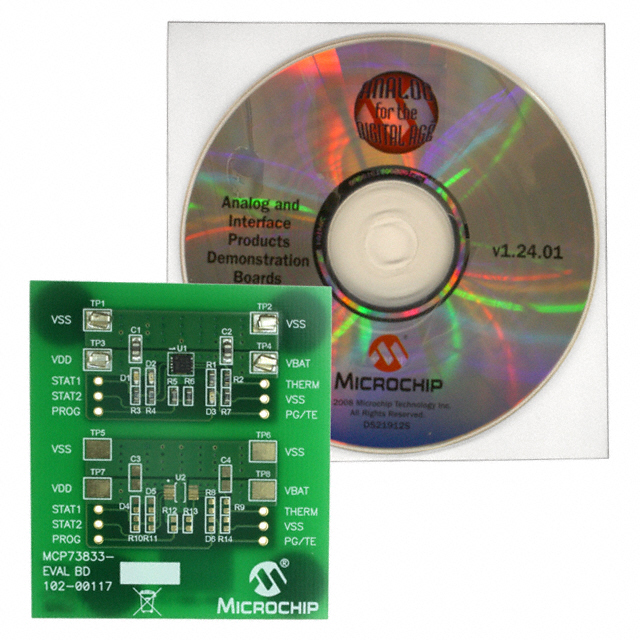

BOARD EVAL FOR MCP73833
Deep-Dive with AI
Search across all available documentation for this part.
MCP73833EV
ActiveMicrochip Technology
BOARD EVAL FOR MCP73833
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MCP73833EV | MCP73833 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 4.2 - 4.35 V |
| Charge Current - Max | - | 1 - 1.1 A |
| Contents | Board(s) | Board(s) |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Over Temperature |
| Function | Battery Charger | Battery Charger |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 10-TFSOP, 10-MSOP, 10-VFDFN Exposed Pad |
| Primary Attributes | Li-Ion / Li-Pol (1 Cell) | Li-Ion / Li-Pol (1 Cell) |
| Programmable Features | - | Current |
| Secondary Attributes | Preconditioning, Cell Temperature Monitoring | Preconditioning, Cell Temperature Monitoring |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-MSOP, 10-DFN (3x3) |
| Type | Power Management | Power Management |
| Utilized IC / Part | MCP7833 | MCP7833 |
| Voltage - Supply (Max) | - | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Avnet Americas | Box | 4 | $ 41.09 | |
| 6 | $ 40.18 | |||
| 10 | $ 39.28 | |||
| 20 | $ 38.38 | |||
| 40 | $ 37.47 | |||
| DigiKey | Bulk | 1 | $ 36.12 | |
| Digikey | Bulk | 1 | $ 36.12 | |
| Future Electronics | Bulk | 1 | $ 35.12 | |
| 1 | $ 37.19 | |||
| 4 | $ 34.65 | |||
| 4 | $ 36.69 | |||
| 15 | $ 34.21 | |||
| 15 | $ 36.22 | |||
| 30 | $ 33.98 | |||
| 30 | $ 35.98 | |||
| 75 | $ 33.45 | |||
| 75 | $ 35.42 | |||
| Master Electronics | N/A | 1 | $ 39.61 | |
| Microchip Technology Inc | N/A | 1 | $ 35.41 | |
| Mouser Electronics | N/A | 1 | $ 35.41 | |
| NAC | N/A | 1 | $ 43.00 | |
| 100 | $ 39.61 | |||
| 500 | $ 37.63 | |||
| 800 | $ 36.71 | |||
| Newark | Bulk | 1 | $ 36.83 | |
| Onlinecomponents.com | N/A | 1 | $ 39.61 | |
| RS | Bulk | 4 | $ 45.15 | |
| 20 | $ 42.89 | |||
| 40 | $ 40.64 | |||
| Richardson RFPD | N/A | 4 | $ 42.39 | |
| 100 | $ 38.59 | |||
MCP73833 Series
Stand-Alone Linear Li-Ion/Li-Polymer Charge Management Controller
| Part | Voltage - Supply (Max) [Max] | Package / Case | Battery Pack Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Fault Protection | Battery Chemistry | Programmable Features | Current - Charging | Charge Current - Max [Max] | Number of Cells | Mounting Type | Function | Embedded | Utilized IC / Part | Supplied Contents | Secondary Attributes | Type | Primary Attributes | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology MCP73833-FCI/UN | 6 V | 10-MSOP, 10-TFSOP | 4.2 V | 85 °C | -40 °C | 10-MSOP | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833-CNI/MF | 6 V | 10-VFDFN Exposed Pad | 4.2 V | 85 °C | -40 °C | 10-DFN (3x3) | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833-NVI/MF | 6 V | 10-VFDFN Exposed Pad | 4.35 V | 85 °C | -40 °C | 10-DFN (3x3) | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833T-GPI/UN | 6 V | 10-MSOP, 10-TFSOP | 4.2 V | 85 °C | -40 °C | 10-MSOP | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833-GPI/MF | 6 V | 10-VFDFN Exposed Pad | 4.2 V | 85 °C | -40 °C | 10-DFN (3x3) | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833T-CNI/UN | 6 V | 10-MSOP, 10-TFSOP | 4.2 V | 85 °C | -40 °C | 10-MSOP | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833EV | Battery Charger | MCP7833 | Board(s) | Cell Temperature Monitoring, Preconditioning | Power Management | Li-Ion / Li-Pol (1 Cell) | Board(s) | ||||||||||||||
Microchip Technology MCP73833-CNI/UN | 6 V | 10-MSOP, 10-TFSOP | 4.2 V | 85 °C | -40 °C | 10-MSOP | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833T-FCI/UN | 6 V | 10-MSOP, 10-TFSOP | 4.2 V | 85 °C | -40 °C | 10-MSOP | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833T-NVI/MF | 6 V | 10-VFDFN Exposed Pad | 4.35 V | 85 °C | -40 °C | 10-DFN (3x3) | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833-AMI/UN | 6 V | 10-MSOP, 10-TFSOP | 4.2 V | 85 °C | -40 °C | 10-MSOP | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833T-AMI/MF | 6 V | 10-VFDFN Exposed Pad | 4.2 V | 85 °C | -40 °C | 10-DFN (3x3) | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833-BZI/UN | 6 V | 10-MSOP, 10-TFSOP | 4.2 V | 85 °C | -40 °C | 10-MSOP | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833T-NVI/UN | 6 V | 10-MSOP, 10-TFSOP | 4.35 V | 85 °C | -40 °C | 10-MSOP | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833T-BZI/UN | 6 V | 10-MSOP, 10-TFSOP | 4.2 V | 85 °C | -40 °C | 10-MSOP | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833-BZI/MF | 6 V | 10-VFDFN Exposed Pad | 4.2 V | 85 °C | -40 °C | 10-DFN (3x3) | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833-FCI/MF | 6 V | 10-VFDFN Exposed Pad | 4.2 V | 85 °C | -40 °C | 10-DFN (3x3) | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833T-AMI/UN | 6 V | 10-MSOP, 10-TFSOP | 4.2 V | 85 °C | -40 °C | 10-MSOP | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833-AMI/MF | 6 V | 10-VFDFN Exposed Pad | 4.2 V | 85 °C | -40 °C | 10-DFN (3x3) | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833T-GPI/MF | 6 V | 10-VFDFN Exposed Pad | 4.2 V | 85 °C | -40 °C | 10-DFN (3x3) | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833-GPI/UN | 6 V | 10-MSOP, 10-TFSOP | 4.2 V | 85 °C | -40 °C | 10-MSOP | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833T-CNI/MF | 6 V | 10-VFDFN Exposed Pad | 4.2 V | 85 °C | -40 °C | 10-DFN (3x3) | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833T-FCI/MF | 6 V | 10-VFDFN Exposed Pad | 4.2 V | 85 °C | -40 °C | 10-DFN (3x3) | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1 A | 1 | Surface Mount | ||||||||
Microchip Technology MCP73833-B6I/UN | 6 V | 10-MSOP, 10-TFSOP | 4.2 V | 85 °C | -40 °C | 10-MSOP | Over Temperature | Lithium Ion/Polymer | Current | Constant - Programmable | 1.1 A | 1 | Surface Mount |
Description
General part information
MCP73833 Series
1A output current linear charge management controller. Includes integrated pass transistor, integrated current sensing, and reverse discharge protection. Also includes safety features such as cell temperature monitoring, on-chip thermal regulation and safety timers. Available in 10-pin 3mm x 3mm DFN package and 10-pin MSOP package
