HS2C9F26C

Active

Switchcraft Inc.

CONN PLUG FMALE 9POS GOLD CRIMP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE 9POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	HS2C9F26C

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Cable Opening [Max] [diameter]	5.49 mm
Cable Opening [Max] [diameter]	0.216 in
Cable Opening [Min] [diameter]	4.57 mm
Cable Opening [Min] [diameter]	0.18 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 HF-1
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Electroless Nickel
Shell Material	Copper Alloy
Shielding	Shielded
Termination	Crimp, Solder Cup
Voltage Rating	30 VAC

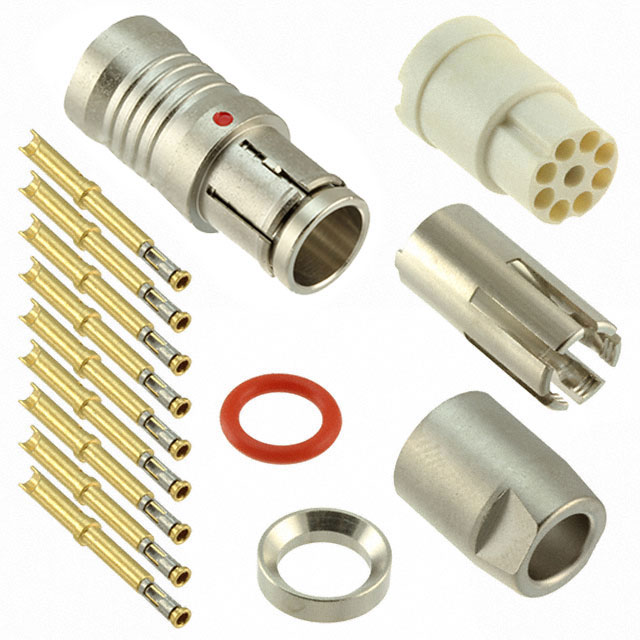

CONN PLUG FMALE 9POS GOLD CRIMP

Part	Contact Finish - Mating	Color	Connector Type	Primary Material	Termination	Ingress Protection	Shell Finish	Fastening Type	Applications	Voltage Rating	Contact Material	Orientation	Number of Positions	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Insert Material	Material Flammability Rating	Shielding	Shell Material
Switchcraft Inc. HS2C9F26C	Gold	Silver	Female Sockets, Plug	Metal	Crimp, Solder Cup	IP66, IP67, IP68	Electroless Nickel	Push-Pull	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	30 VAC	Copper Alloy	Keyed	9	5.49 mm	4.57 mm	0.18 in	0.216 in	135 °C	-40 °C	Free Hanging (In-Line)	Liquid Crystal Polymer (LCP)	UL94 HF-1	Shielded	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Plug, Female Sockets Crimp or Solder Cup
