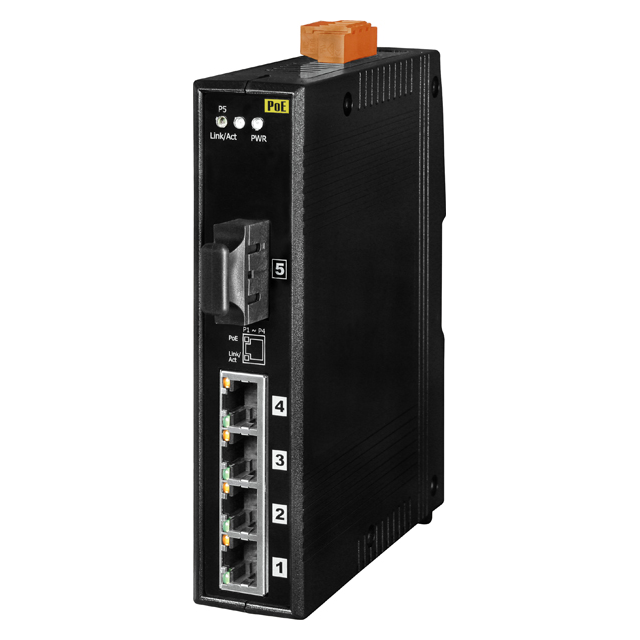

NS-205PFC
ActiveICP DAS USA INC
MULTI-MODE, SC CONNECTOR, 4 PORT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NS-205PFC
ActiveICP DAS USA INC
MULTI-MODE, SC CONNECTOR, 4 PORT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NS-205PFC |
|---|---|
| Configuration | Fixed |
| Connector Type | RJ45, SC |
| Copper Ports | 4 |
| Copper Type | 10/100 |
| Distance | 2 km |
| Fiber Ports | 1 |
| Fiber Type | 100BASE-FX (Multimode) |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -30 ░C |
| Type | Unmanaged |
| Voltage - Input [Max] | 55 V |
| Voltage - Input [Min] | 46 V |
NS-205 Series
| Part | Distance | Connector Type | Configuration | Fiber Type | Copper Ports | Type | Mounting Type | Voltage - Input [Max] | Voltage - Input [Min] | Copper Type | Fiber Ports | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | PoE Ports | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ICP DAS USA INC | 2 km | RJ45 SC | Fixed | 100BASE-FX (Singlemode) | 4 | Unmanaged | DIN Rail | 30 V | 10 V | 10/100 | 1 | 70 °C | 0 °C | |||
ICP DAS USA INC | RJ-45 | Fixed | 5 | Switch - Unmanaged | 55 V | 46 V | 10/100 | 75 ░C | -40 °C | 4 | 4 | |||||
ICP DAS USA INC | RJ45 | Fixed | 5 | Switch - Unmanaged | DIN Rail | 48 V | 12 V | 10 100 1000 | 75 ░C | -40 °C | 5 | |||||
ICP DAS USA INC | 2 km | RJ45 SC | Fixed | 100BASE-FX (Multimode) | 4 | Unmanaged | DIN Rail | 55 V | 46 V | 10/100 | 1 | 75 ░C | -30 ░C | |||
ICP DAS USA INC | RJ45 | Fixed | 5 | Switch - Unmanaged | DIN Rail | 30 V | 10 V | 10/100 | 60 °C | -10 °C | 5 | IP67 | ||||
ICP DAS USA INC | RJ45 | Fixed | 5 | Switch - Unmanaged | DIN Rail | 32 V | 18 V | 10/100 | 75 ░C | -40 °C | 5 | |||||
ICP DAS USA INC | 2 km | RJ45 SC | Fixed | 100BASE-FX (Multimode) | 4 | Unmanaged | DIN Rail | 30 V | 10 V | 10/100 | 1 | 70 °C | 0 °C | |||
ICP DAS USA INC | 2 km | RJ45 SC | Fixed | 100BASE-FX (Multimode) | 4 | Unmanaged | DIN Rail | 48 V | 12 V | 10/100 | 1 | 75 ░C | -30 ░C | |||
ICP DAS USA INC | RJ45 | Fixed | 5 | Switch - Unmanaged | Wall Mount | 53 VDC | 46 V | 10/100 | 60 °C | -10 °C | 5 | 4 | IP67 | |||
ICP DAS USA INC | 2 km | RJ45 ST | Fixed | 100BASE-FX (Multimode) | 4 | Unmanaged | DIN Rail | 55 V | 46 V | 10/100 | 1 | 75 ░C | -30 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 489.00 | |
Description
General part information
NS-205 Series
MULTI-MODE, SC CONNECTOR, 4 PORT
