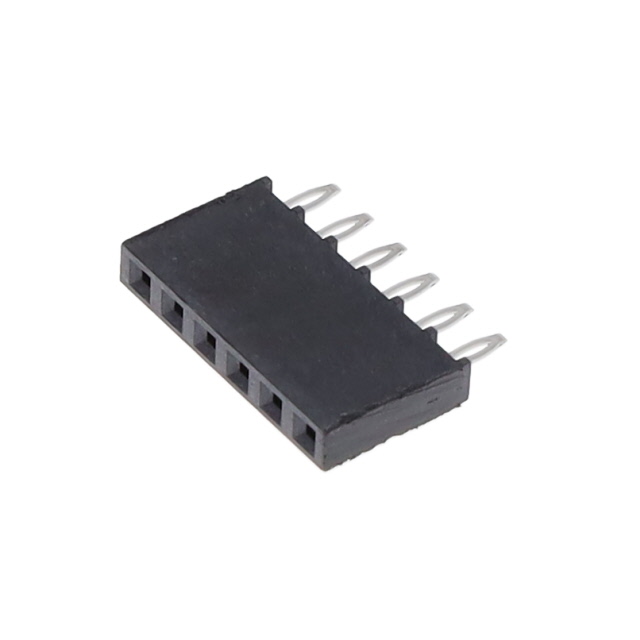

PHF-106-01-S-S

Active

Samtec Inc.

CONN RCPT 6POS 0.1 GOLD PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 6POS 0.1 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	PHF-106-01-S-S

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post [x]	3.12 mm
Contact Length - Post [x]	0.123 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	4.8 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder, Press-Fit

Part	Insulation Material	Termination	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current Rating (Amps)	Contact Finish - Mating	Contact Material	Fastening Type	Number of Rows	Contact Shape	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Material Flammability Rating	Connector Type	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Type
Samtec Inc. PHF-106-01-S-S	Liquid Crystal Polymer (LCP)	Press-Fit Solder	0.335 "	8.51 mm	-55 °C	125 °C	Through Hole	4.8 A	Gold	Phosphor Bronze	Push-Pull	1	Square	Black	30 Áin	0.76 Ám	Tin	UL94 V-0	Receptacle	6	3.12 mm	0.123 in	0.1 in	2.54 mm	All	Forked
