General part information

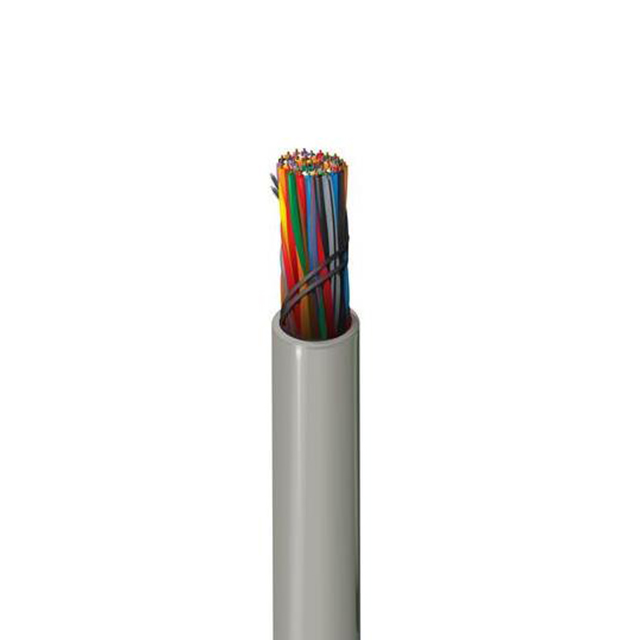

50 (25 Pair) Conductor Multi-Pair, Cat3 Cable Gray 24 AWG 1000.0' (304.8m)
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1232A1 0081000 |
|---|---|
| Cable Type | Multi-Pair, Cat3 |
| Conductor Insulation | Polyolefin (PO) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Jacket (Insulation) Diameter [diameter] | 10.13 mm |
| Jacket (Insulation) Diameter [diameter] | 0.399 " |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC), Riser |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors [custom] | 50 |
| Number of Conductors [custom] | 25 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Ratings | UL Style CMR |
| Usage | Network |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
CAT3 25PR U/UTP CMR REEL
| Part | Conductor Strand | Number of Conductors [custom] | Number of Conductors [custom] | Usage | Ratings | Conductor Insulation | Voltage | Conductor Material | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Wire Gauge | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Belden Inc. 1232A1 0081000 | Solid | 50 | 25 | Network | UL Style CMR | Polyolefin (PO) | 300 V | Copper, Bare | Gray | -20 C | 60 °C | 1000 ft | 304.8 m | 24 AWG | Poly-Vinyl Chloride (PVC), Riser | 10.13 mm | 0.399 " | Multi-Pair, Cat3 |
