CS45-16IO1R

Active

IXYS

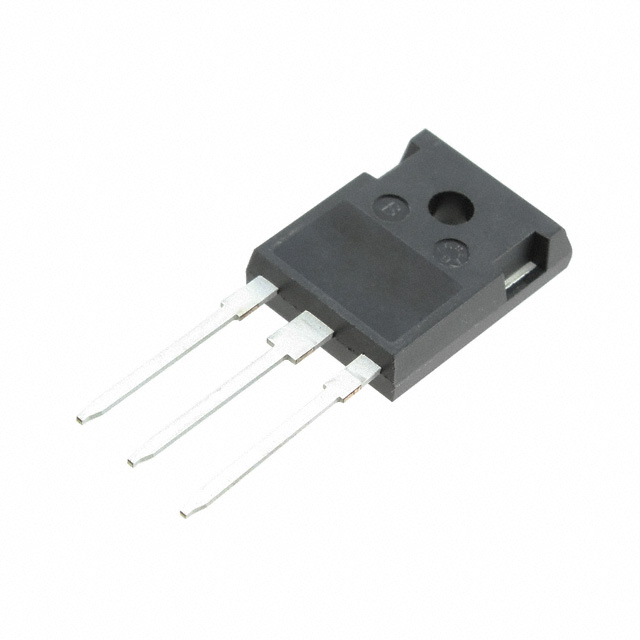

SCR 1.6KV 75A ISOPLUS247

Search across all available documentation for this part.

Active

IXYS

SCR 1.6KV 75A ISOPLUS247

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR 1.6 kV 75 A Standard Recovery Through Hole ISOPLUS247™

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CS45-16IO1R	CS45 Series

Current - Gate Trigger (Igt) (Max) [Max] [x]	100 mA	100 mA
Current - Hold (Ih) (Max) [Max]	100 mA	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	560 A	560 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	520 A	520 A
Current - Off State (Max) [Max]	5 mA	5 mA
Current - On State (It (AV)) (Max) [Max]	48 A	48 A
Current - On State (It (RMS)) (Max)	75 A	75 A
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	140 °C	140 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	TO-247-3	TO-247-3
SCR Type	Standard Recovery	Standard Recovery
Supplier Device Package	ISOPLUS247™	TO-247AD, ISOPLUS247™
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V	1.5 V
Voltage - Off State	1.6 kV	1.6 - 800 V
Voltage - On State (Vtm) (Max) [Max]	1.64 V	1.64 V

SCR 800V 75A TO247AD

Part	Voltage - Gate Trigger (Vgt) (Max) [Max]	Voltage - On State (Vtm) (Max) [Max]	SCR Type	Current - Gate Trigger (Igt) (Max) [Max] [x]	Package / Case	Current - Off State (Max) [Max]	Supplier Device Package	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - On State (It (AV)) (Max) [Max]	Current - On State (It (RMS)) (Max)	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Hold (Ih) (Max) [Max]
IXYS CS45-08IO1	1.5 V	1.64 V	Standard Recovery	100 mA	TO-247-3	5 mA	TO-247AD	Through Hole	140 °C	-40 °C	48 A	75 A	800 V	560 A	520 A	100 mA
IXYS CS45-16IO1R	1.5 V	1.64 V	Standard Recovery	100 mA	TO-247-3	5 mA	ISOPLUS247™	Through Hole	140 °C	-40 °C	48 A	75 A	1.6 kV	560 A	520 A	100 mA
