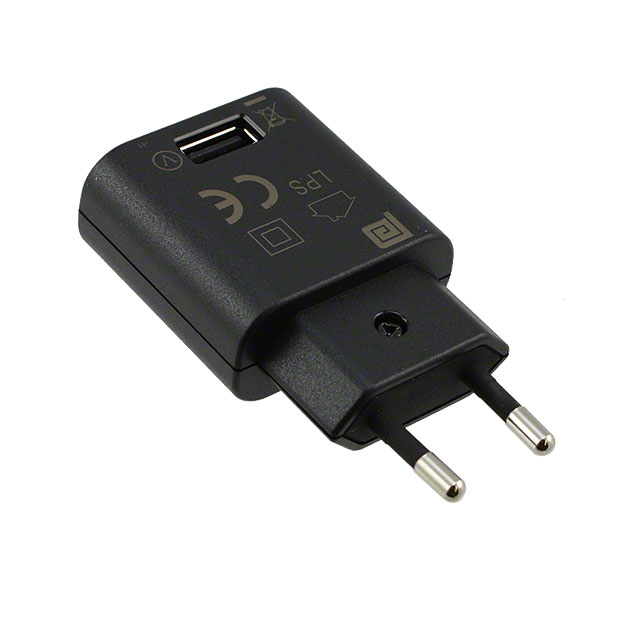

PSM03E-050Q

Obsolete

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 2.8W

Search across all available documentation for this part.

Obsolete

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 2.8W

Technical Specifications

Parameters and characteristics for this part

Specification	PSM03E-050Q

Applications	ITE (Commercial)
Approval Agency	cULus
Current - Output (Max) [Max]	550 mA
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	CEE 7/16
Input Type	Fixed Blade
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power (Watts)	2.8 W
Region Utilized	Europe
Size / Dimension [x]	21 mm, 0.83 in
Size / Dimension [y]	43 mm, 1.69 in
Size / Dimension [z]	60.2 mm, 2.37 in
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V
Weight	0.18 lb
Weight	81.65 g

Part	Input Connector	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Efficiency	Power (Watts)	Voltage - Output	Form	No Load Power Consumption [Max]	Input Type	Approval Agency	Region Utilized	Weight	Weight	Applications	Voltage - Input [Min]	Voltage - Input [Max]
Phihong USA PSM03E-050Q	CEE 7/16	40 °C	0 °C	0.83 in 21 mm	2.37 in 60.2 mm	1.69 in 43 mm	550 mA	CoC Tier 2 Level VI	2.8 W	5 V	Wall Mount (Class II)	150 mW	Fixed Blade	cULus	Europe	0.18 lb	81.65 g	ITE (Commercial)	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5V 2.8 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
