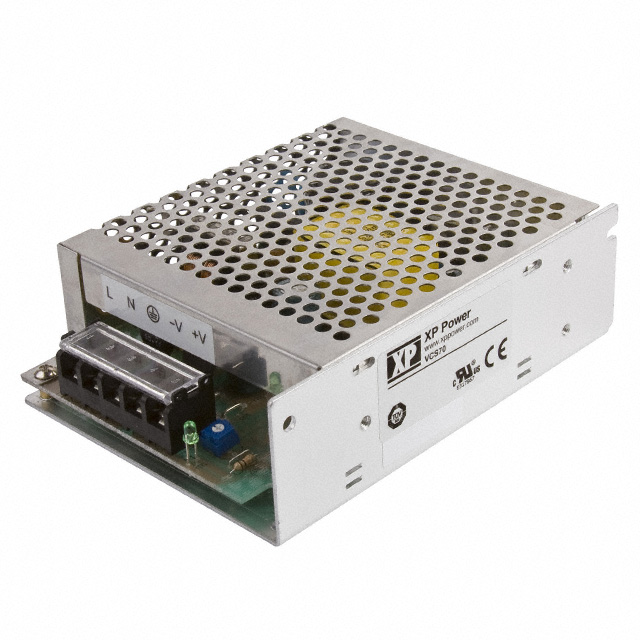

VCS70US12

Active

XP Power

AC/DC CONVERTER 12V 70W

Search across all available documentation for this part.

Active

XP Power

AC/DC CONVERTER 12V 70W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VCS70US12	VCS70 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB	CB
Current - Output 1	5.83 A	4.67 - 5.83 A
Efficiency	87 %	87 %
Features	Universal Input, Adjustable Output, DC Input Capable	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Power (Watts)	70 W	70 W
Size / Dimension [x]	5.12 "	5.12 "
Size / Dimension [x]	130 mm	130 mm
Size / Dimension [y]	3.88 in	3.88 in
Size / Dimension [y]	98.5 mm	98.5 mm
Size / Dimension [z]	1.61 "	1.61 "
Size / Dimension [z]	41 mm	41 mm
Standard Number	62368-1	62368-1
Type	Enclosed	Enclosed
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	12 V	12 - 15 V

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 70 W, 15 V, 4.67 A

Part	Mounting Type	Standard Number	Approval Agency	Current - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Applications	Power (Watts)	Voltage - Output 1	Minimum Load Required	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Type	Number of Outputs	Features	Efficiency
XP Power VCS70US15	Chassis Mount	62368-1	CB	4.67 A	1.61 "	3.88 in	41 mm	98.5 mm	5.12 "	130 mm	ITE (Commercial)	70 W	15 V		3000 V	-25 °C	70 °C	Enclosed	1	Adjustable Output, DC Input Capable, Universal Input	87 %
XP Power VCS70US12	Chassis Mount	62368-1	CB	5.83 A	1.61 "	3.88 in	41 mm	98.5 mm	5.12 "	130 mm	ITE (Commercial)	70 W	12 V		3000 V	-25 °C	70 °C	Enclosed	1	Adjustable Output, DC Input Capable, Universal Input	87 %
