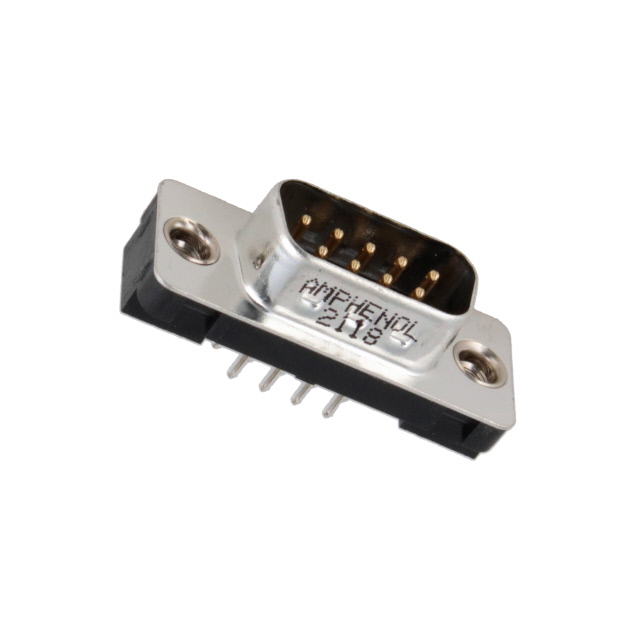

L717TSEH09POL2

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 9POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 9POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	L717TSEH09POL2

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	600 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Features	Material Flammability Rating	Contact Form	Connector Type	Connector Style	Dielectric Material	Current Rating (Amps)	Number of Rows	Contact Material	Voltage Rating	Termination	Mounting Type	Number of Positions	Contact Finish Thickness
Amphenol ICC (Commercial Products) L717TSEH09POL2RM5C309	-55 °C	125 °C	Gold	4-40 Board Side	DE E	1	0.76 Ám	30 Áin	Signal	Board Lock Grounding Indents	UL94 V-0	Stamped	Male Pins Plug	D-Sub	Thermoplastic Glass Filled	5 A	2	Copper Alloy	600 V	Solder	Through Hole	9
Amphenol ICC (Commercial Products) L717TSEH09POL2	-55 °C	125 °C	Gold	4-40 Board Side	DE E	1			Signal	Grounding Indents	UL94 V-0	Stamped	Male Pins Plug	D-Sub	Thermoplastic Glass Filled	5 A	2	Copper Alloy	600 V	Solder	Through Hole	9	Flash
Amphenol ICC (Commercial Products) L717TSEH09POL2C309	-55 °C	125 °C	Gold	4-40 Board Side	DE E	1	0.76 Ám	30 Áin	Signal	Grounding Indents	UL94 V-0	Stamped	Male Pins Plug	D-Sub	Thermoplastic Glass Filled	5 A	2	Copper Alloy	600 V	Solder	Through Hole	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Plug, Male Pins Connector
