S6E2H44F0AGV2000M

Active

Infineon Technologies

IC MCU 32BIT 288KB FLASH 100LQFP

Search across all available documentation for this part.

Active

Infineon Technologies

IC MCU 32BIT 288KB FLASH 100LQFP

Technical Specifications

Parameters and characteristics for this part

Specification	S6E2H44F0AGV2000M

Connectivity	CANbus, UART/USART, I2C, LINbus, CSIO, EBI/EMI
Core Processor	ARM® Cortex®-M4F
Core Size	32-Bit
Data Converters	A/D 24x12b, D/A 2x12b
Mounting Type	Surface Mount
Number of I/O	80
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

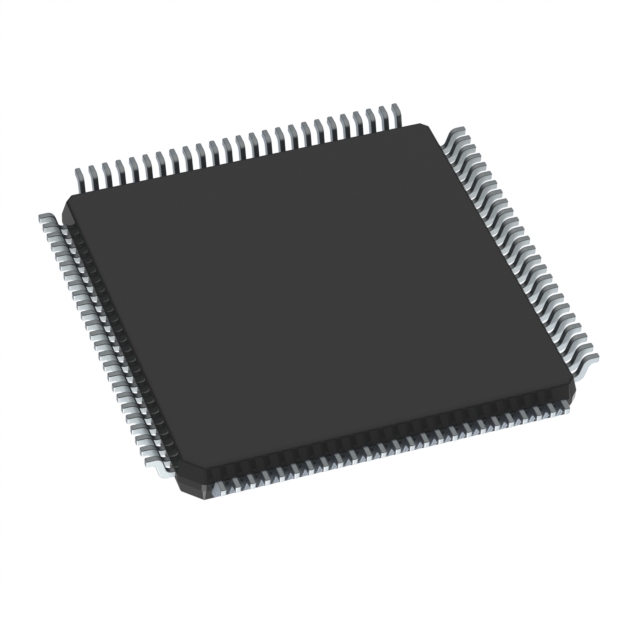

Package / Case	100-LQFP
Peripherals	DMA, LVD, PWM, POR, WDT
Program Memory Size	288 KB
Program Memory Type	FLASH
Speed	160 MHz
Supplier Device Package	100-LQFP (14x14)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.7 V

Part	Core Size	Mounting Type	Peripherals	Core Processor	Operating Temperature [Min]	Operating Temperature [Max]	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Program Memory Size	Package / Case	Program Memory Type	Connectivity	Data Converters	Number of I/O	Speed	Supplier Device Package	Data Converters [custom]	Data Converters [custom]
Infineon Technologies S6E2H44F0AGV20000	32-Bit Single-Core	Surface Mount	DMA LVD POR PWM WDT	ARM® Cortex®-M4F	-40 °C	125 °C	Internal	2.7 V	5.5 V	288 KB	100-LQFP	FLASH	CANbus CSIO EBI/EMI I2C LINbus UART/USART	A/D 24x12b D/A 2x12b	80	160 MHz	100-LQFP (14x14)
Infineon Technologies S6E2H44F0AGV2000M	32-Bit	Surface Mount	DMA LVD POR PWM WDT	ARM® Cortex®-M4F	-40 °C	125 °C	Internal	2.7 V	5.5 V	288 KB	100-LQFP	FLASH	CANbus CSIO EBI/EMI I2C LINbus UART/USART	A/D 24x12b D/A 2x12b	80	160 MHz	100-LQFP (14x14)
Infineon Technologies S6E2H44E0AGV2000M	32-Bit Single-Core	Surface Mount	DMA LVD POR PWM WDT	ARM® Cortex®-M4F	-40 °C	125 °C	Internal	2.7 V	5.5 V	288 KB	80-LQFP	FLASH	CANbus CSIO EBI/EMI I2C LINbus UART/USART		63 I/O	160 MHz		12 b	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	900	$ 6.58

General part information

ARM® Cortex®-M4F FM4 S6E2H4 Microcontroller IC 32-Bit 160MHz 288KB (288K x 8) FLASH 100-LQFP (14x14)
