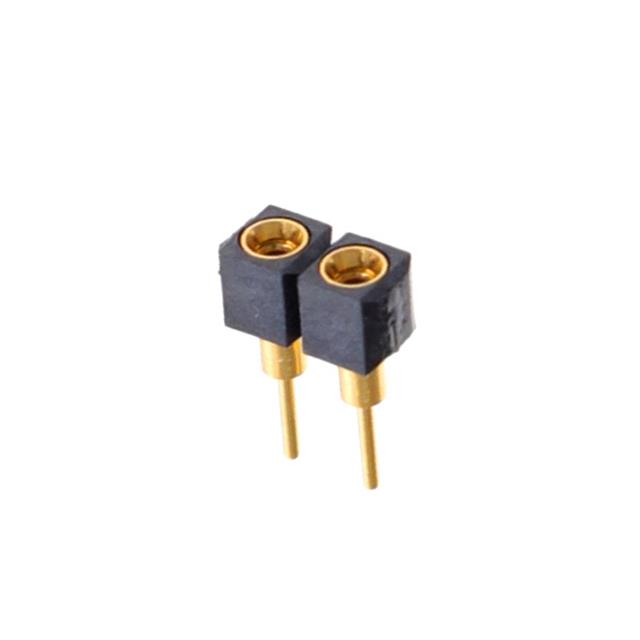

HSS-102-G-2

Active

Samtec Inc.

CONN SOCKET STRIP SKT 2 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET STRIP SKT 2 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Technical Specifications

Parameters and characteristics for this part

Specification	HSS-102-G-2

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Brass, Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

Part	Contact Finish - Post	Number of Rows	Connector Type	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions Loaded	Insulation Material	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Termination	Insulation Color	Contact Material	Insulation Height	Insulation Height	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. HSS-102-T-2	Tin	1	Receptacle	0.1 in	2.54 mm	Push-Pull	All	Liquid Crystal Polymer (LCP)	Female Socket	3.18 mm	0.125 in	30 Áin	0.76 Ám	Gold	Solder	Black	Beryllium Copper Brass	0.1 in	2.54 mm	2	-55 °C	125 °C	Circular	Through Hole
Samtec Inc. HSS-102-G-2	Gold	1	Receptacle	0.1 in	2.54 mm	Push-Pull	All	Liquid Crystal Polymer (LCP)	Female Socket	3.18 mm	0.125 in	30 Áin	0.76 Ám	Gold	Solder	Black	Beryllium Copper Brass	0.1 in	2.54 mm	2	-55 °C	125 °C	Circular	Through Hole	10 çin	0.25 çm
Samtec Inc. HSS-102-S-2	Tin	1	Receptacle	0.1 in	2.54 mm	Push-Pull	All	Liquid Crystal Polymer (LCP)	Female Socket	3.18 mm	0.125 in	10 çin	0.25 çm	Gold	Solder	Black	Beryllium Copper Brass	0.1 in	2.54 mm	2	-55 °C	125 °C	Circular	Through Hole
