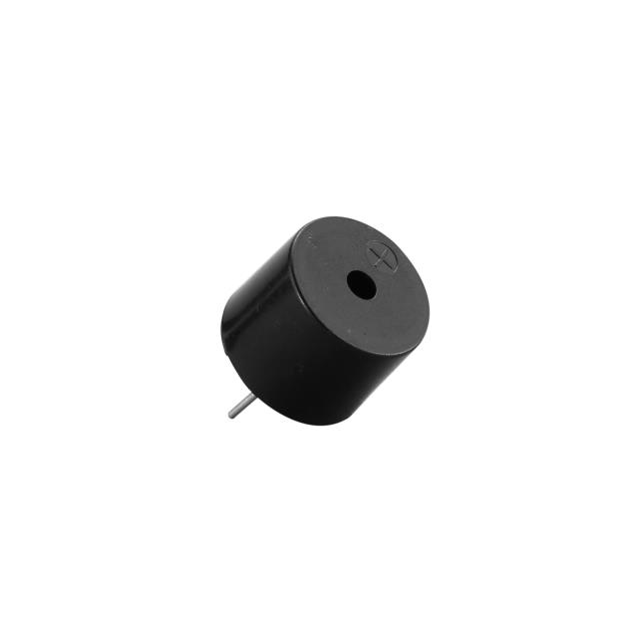

EMX-7TB12P

Active

East Electronics

BUZZER 12V 12MM TH

Search across all available documentation for this part.

Active

East Electronics

BUZZER 12V 12MM TH

Technical Specifications

Parameters and characteristics for this part

BUZZER 12V 12MM TH

Part	Sound Pressure Level (SPL)	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Operating Mode	Operating Temperature [Min]	Operating Temperature [Max]	Current - Supply	Voltage Range [Min]	Voltage Range [Max]	Termination	Frequency
East Electronics EMX-7TB12P	86 dB	Through Hole	0.394 in	10 mm	12 mm	0.472 in	12 VDC	Continuous	-20 C	70 °C	40 mA	9 V	15 V	PC Pins	2.7 kHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers 12 V 40mA 2.7kHz 86dB @ 12V, 10cm Through Hole PC Pins
