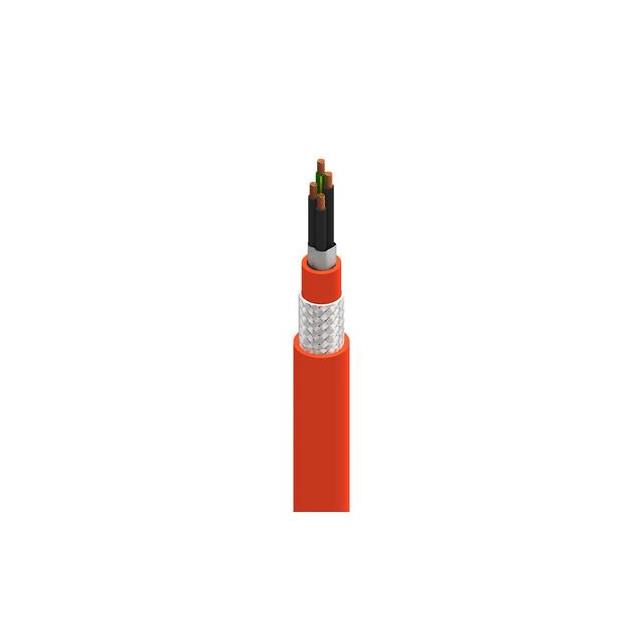

7136WS 0031000

Active

Belden Inc.

CABLE 4COND 14AWG ORG SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 14AWG ORG SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	7136WS 0031000

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	266
Conductor Strand [diameter]	38 AWG
Features	Oil Resistant, UV Resistant
Jacket (Insulation) Diameter [diameter]	12.4 mm
Jacket (Insulation) Diameter [diameter]	0.488 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	1.346 mm
Jacket (Insulation) Thickness	0.053 in
Jacket Color	Orange
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Ratings	UL Style 20328
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Wire Gauge	13.5 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Material	Length	Length	Jacket (Insulation) Material	Conductor Insulation	Shield Type	Cable Type	Features	Conductor Strand [custom]	Conductor Strand [diameter]	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Shield Material	Wire Gauge	Ratings
Belden Inc. 7136WS 0031000	12.4 mm	0.488 in	Orange	Copper Bare	1000 ft	304.8 m	Thermoplastic Elastomer (TPE)	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Braid	Multi-Conductor	Oil Resistant UV Resistant	266	38 AWG	85 %	1.346 mm	0.053 in	4	Copper Tinned	13.5 AWG	UL Style 20328

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 32.42

General part information

4 Conductor Multi-Conductor Cable Orange 14 AWG Braid 1000.0' (304.8m)
