M1TXK-2640K

Active

IDC CABLE - MSD26K/MC26F/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

M1TXK-2640K

Active

IDC CABLE - MSD26K/MC26F/X

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M1TXK-2640K	M1TXK Series

Cable Termination	IDC	IDC
Color	Multiple, Twisted Pair (Flat)	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Cable	Socket to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key	Polarizing Key
Length [x]	1.02 m	1.02 - 914.4 m
Length [x]	3.34 ft	3 - 3.34 ft
Number of Positions	26	10 - 50
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M1TXK Series

IDC CABLE - MSD34K/MC34F/X

Part	Cable Termination	Pitch - Connector	Pitch - Connector	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Features	Length [x]	Length [x]	Connector Type	Shielding	Pitch - Cable	Pitch - Cable	Color	Number of Rows	Number of Positions	Number of Positions
3M M1TXK-3440K	IDC	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	Polarizing Key	1.02 m	3.34 ft	Socket to Cable	Unshielded	0.05 "	1.27 mm	Multiple, Twisted Pair (Flat)	2	34
3M M1TXK-2436J	IDC	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	Polarizing Key	914.4 mm	3 ft	Socket to Cable	Unshielded	0.05 "	1.27 mm		2	24
3M M1TXK-2036R	IDC	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	Polarizing Key	914.4 mm	3 ft	Socket to Cable	Unshielded	0.05 "	1.27 mm	Multiple, Ribbon	2	20
3M M1TXK-2636R	IDC	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	Polarizing Key	914.4 mm	3 ft	Socket to Cable	Unshielded	0.05 "	1.27 mm	Multiple, Ribbon	2	26
3M M1TXK-1040K	IDC	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	Polarizing Key	1.02 m	3.34 ft	Socket to Cable	Unshielded	0.05 "	1.27 mm	Multiple, Twisted Pair (Flat)	2	10
3M M1TXK-2640K	IDC	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	Polarizing Key	1.02 m	3.34 ft	Socket to Cable	Unshielded	0.05 "	1.27 mm	Multiple, Twisted Pair (Flat)	2	26
3M M1TXK-3036R	IDC	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	Polarizing Key	914.4 mm	3 ft	Socket to Cable	Unshielded	0.05 "	1.27 mm	Multiple, Ribbon	2	30
3M M1TXK-1036J	IDC	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	Polarizing Key	914.4 mm	3 ft	Socket to Cable	Unshielded	0.05 "	1.27 mm		2	10
3M M1TXK-1636J	IDC	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	Polarizing Key	914.4 mm	3 ft	Socket to Cable	Unshielded	0.05 "	1.27 mm		2		16
3M M1TXK-2636J	IDC	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	Polarizing Key	914.4 mm	3 ft	Socket to Cable	Unshielded	0.05 "	1.27 mm		2	26

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.00
		10	$ 15.40
		25	$ 13.94
		50	$ 12.95
		100	$ 12.05
		250	$ 10.99
		500	$ 10.28
		1000	$ 9.70

Description

General part information

M1TXK Series

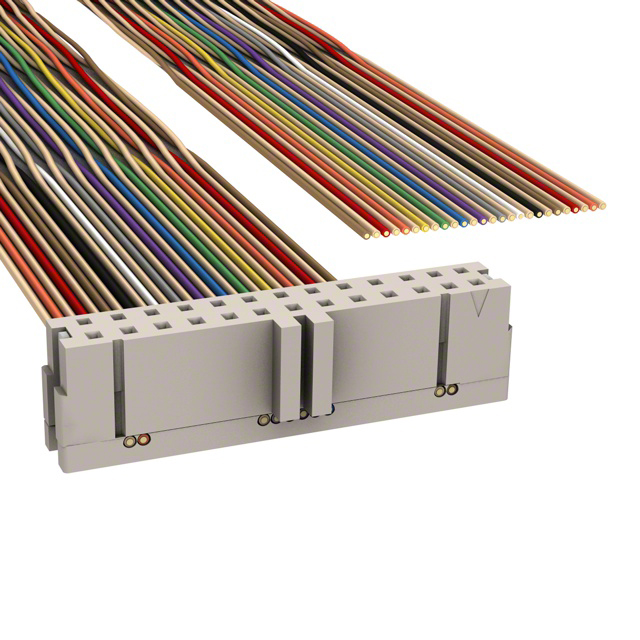

26 Position Cable Assembly Rectangular Socket to Cable 3.34' (1.02m)

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet

1700 Series

Datasheet
