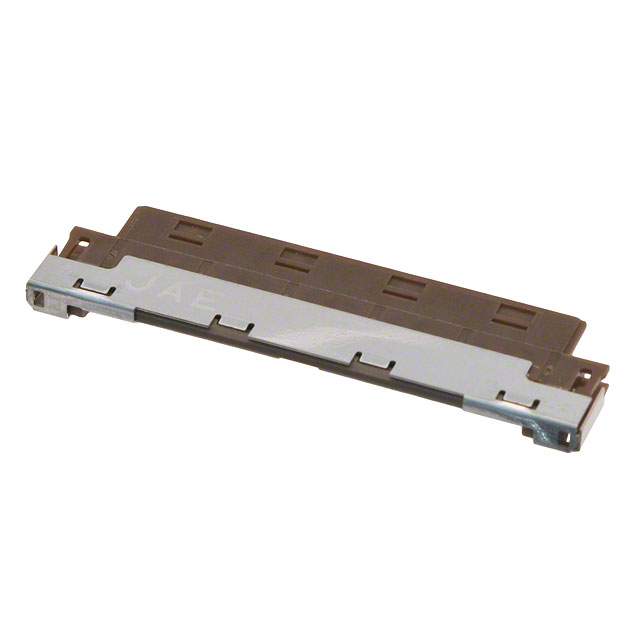

FI-SE20MRE

Active

JAE Electronics

CONN PLUG 20POS GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG 20POS GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Contact Finish	Wire Type	Fastening Type	Number of Rows	Mounting Type	Connector Type	Pitch [x]	Pitch [x]	Color	Current Rating (Amps)	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Termination	Features	Contact Finish - Post	Contact Material	Insulation Color	Material Flammability Rating	Insulation Height	Insulation Height	Voltage Rating	Contact Shape	Style	Shrouding	Cable Termination	Pitch - Connector	Pitch - Connector	Length	Length	Length
JAE Electronics FI-SE20ME	20	Gold	Flat Flexible Cable	Detent Lock	1	Free Hanging (In-Line)	Plug	0.049 in	1.25 mm	Black
JAE Electronics FI-SE20P-HFE	20			Friction Lock	1	Surface Mount Right Angle	Receptacle				1 A	All	-40 °C	80 C	Male Pin	Gold	1.25 mm	0.049 in	Solder	Shielded Solder Retention	Tin or Tin-Alloy	Copper Alloy	Beige	UL94 V-0	2.1 mm	0.083 "	200 V	Square	Board to Cable/Wire	Shrouded - 4 Wall
JAE Electronics FI-SE20MRE	20	Gold	Flat Flexible Cable	Detent Lock	1	Free Hanging (In-Line)	Plug	0.049 in	1.25 mm	Black
JAE Electronics FISE20C00109437
JAE Electronics FI-SE20P-HFE-E3000	20			Friction Lock	1	Surface Mount Right Angle	Receptacle				1 A	All	-40 °C	80 C	Male Pin	Gold	1.25 mm	0.049 in	Solder	Shielded Solder Retention	Tin or Tin-Alloy	Copper Alloy	Beige	UL94 V-0	2.1 mm	0.083 "	200 V	Square	Board to Cable/Wire	Shrouded - 4 Wall
JAE Electronics FI-SE20S-2-L150S	20	Gold			1		Plug to Plug																								Crimp	0.049 in	1.25 mm	150 mm	5.91 "	0.492 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Rectangular Plug Connector Gold
