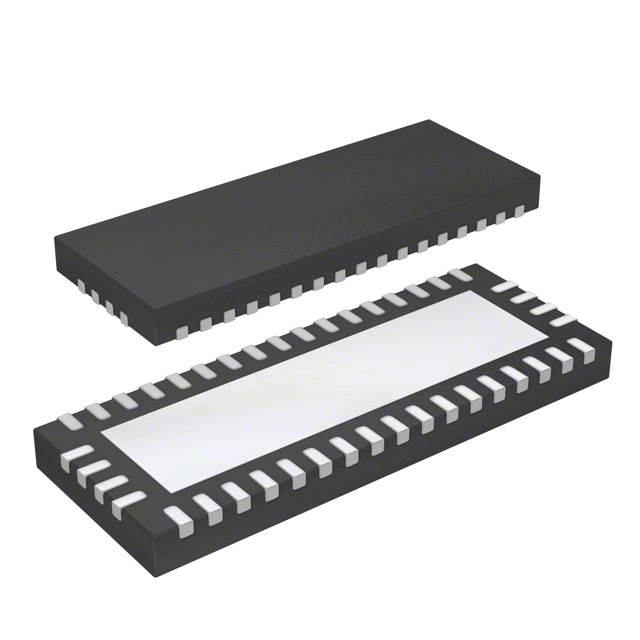

STMUX3040QTTR

Obsolete

STMicroelectronics

IC SWITCH SPDT X 8 8OHM 42TQFN

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC SWITCH SPDT X 8 8OHM 42TQFN

Technical Specifications

Parameters and characteristics for this part

Specification	STMUX3040QTTR

-3db Bandwidth	1.3 GHz
Channel Capacitance (CS(off), CD(off)) [custom]	4 pF
Channel Capacitance (CS(off), CD(off)) [custom]	4 pF
Channel-to-Channel Matching (ΔRon)	500 mOhm
Crosstalk	-30 dB
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits [custom]	8
On-State Resistance (Max) [Max]	8 Ohm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	42-TQFN
Supplier Device Package	42-TQFN-EP (3.5x9)
Switch Circuit	SPDT
Switch Time (Ton, Toff) (Max) [custom]	8.5 ns
Switch Time (Ton, Toff) (Max) [custom]	9 ns
Voltage - Supply, Single (V+) [Max]	3.6 V
Voltage - Supply, Single (V+) [Min]	1.65 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Switch Circuit	Mounting Type	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	-3db Bandwidth	Number of Circuits [custom]	Crosstalk	Package / Case	Multiplexer/Demultiplexer Circuit	Channel-to-Channel Matching (ΔRon)	On-State Resistance (Max) [Max]
STMicroelectronics STMUX3040QTTR	85 °C	-40 °C	42-TQFN-EP (3.5x9)	8.5 ns	9 ns	1.65 V	3.6 V	SPDT	Surface Mount	4 pF	4 pF	1.3 GHz	8	-30 dB	42-TQFN	2:1	500 mOhm	8 Ohm
