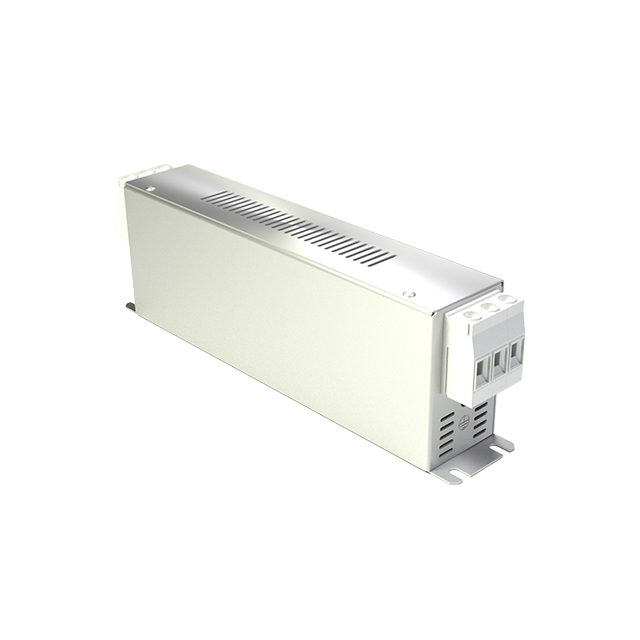

FLLD31K0APVI1

KEMET

LINE FILTER 520VAC 1KA CHASS MNT

Search across all available documentation for this part.

KEMET

LINE FILTER 520VAC 1KA CHASS MNT

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Mounting Type	Filter Type	Approval Agency	Voltage - Rated AC	Current	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Operating [Max]	Frequency - Operating [Min]	Termination Style	Operating Temperature [custom]	Configuration	Voltage - Rated AC (Phase to Ground/Neutral)
KEMET FLLD3600APVI1	Photovoltaic Inverter	Chassis Mount	Three Phase (Delta)	EN UL	520 V	600 A	100 °C	-40 °C	60 Hz	50 Hz	Quick Connect
KEMET FLLD3030AMHT3	General Purpose	Chassis Mount	Three Phase (Delta)	ENEC UL		30 A			60 Hz	50 Hz	Terminal Block	-25 °C 100 °C	Single Stage	305 V
KEMET FLLD3100AMHT6	General Purpose	Chassis Mount	Three Phase (Delta)	ENEC UL		100 A			60 Hz	50 Hz	Terminal Block	-25 °C 100 °C	Single Stage	305 V
KEMET FLLD3007AMHT3	General Purpose	Chassis Mount	Three Phase (Delta)	ENEC UL		7 A			60 Hz	50 Hz	Terminal Block	-25 °C 100 °C	Single Stage	305 V
KEMET FLLD31K6APVI1	Photovoltaic Inverter	Chassis Mount	Three Phase (Delta)	EN UL	520 V	1.6 kA	100 °C	-40 °C	60 Hz	50 Hz	Quick Connect
KEMET FLLD31K0APVI1	Photovoltaic Inverter	Chassis Mount	Three Phase (Delta)	EN UL	520 V	1 kA	100 °C	-40 °C	60 Hz	50 Hz	Quick Connect
KEMET FLLD3016AMHT3	General Purpose	Chassis Mount	Three Phase (Delta)	ENEC UL		16 A			60 Hz	50 Hz	Terminal Block	-25 °C 100 °C	Single Stage	305 V
KEMET FLLD3055AMHT5	General Purpose	Chassis Mount	Three Phase (Delta)	ENEC UL		55 A			60 Hz	50 Hz	Terminal Block	-25 °C 100 °C	Single Stage	305 V
KEMET FLLD3320APVI1	Photovoltaic Inverter	Chassis Mount	Three Phase (Delta)	EN UL	520 V	320 A	100 °C	-40 °C	60 Hz	50 Hz	Quick Connect

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1054.71

General part information

Three Phase (Delta) EMC/EMI Line Filter 1 kA 520V 50/60Hz Quick Connect

Technical documentation and resources
