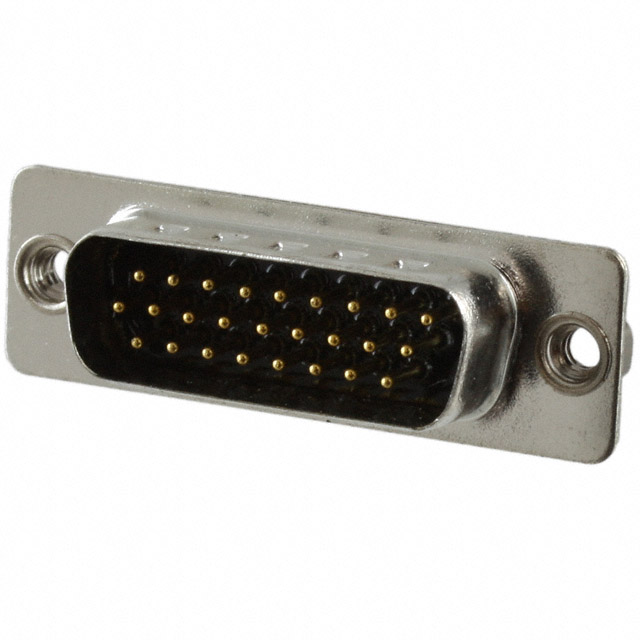

780-M26-103L011

Active

MH Connectors

780-M26-103L011 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

780-M26-103L011 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	780-M26-103L011

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Cable Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG

Part	Features	Contact Finish Thickness	Shell Material, Finish	Connector Type	Color	Flange Feature	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout	Shell Size, Connector Layout	Contact Type	Current Rating (Amps)	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Ingress Protection	Material Flammability Rating	Dielectric Material	Connector Style	Contact Finish	Number of Rows	Termination	Mounting Type
MH Connectors 780-M26-103L011	Grounding Indents	Flash	Nickel Plated Steel	Male Pins Plug	Black	Cable Side	26	105 ░C	-55 °C	2	(DA A) High Density	Signal	3 A	Brass	24 AWG	28 AWG	IP67 - Dust Tight Waterproof	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub High Density	Gold	3
MH Connectors 780-M26-113R011	Grounding Indents	Flash	Nickel Plated Steel	Male Pins Plug	Black	4-40 Board Side	26	105 ░C	-55 °C	2	(DA A) High Density	Signal	3 A	Brass			IP67 - Dust Tight Waterproof	UL94 V-0	Polyamide (PA6T) Nylon 6T	D-Sub High Density	Gold	3	Solder	Panel Mount Through Hole
MH Connectors 780-M26-103L001	Grounding Indents	Flash	Nickel Plated Steel	Male Pins Plug	Black	Housing/Shell (Unthreaded)	26	105 ░C	-55 °C	2	(DA A) High Density	Signal	3 A	Brass	24 AWG	28 AWG	IP67 - Dust Tight Waterproof	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub High Density	Gold	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position D-Sub, High Density Plug, Male Pins Connector
