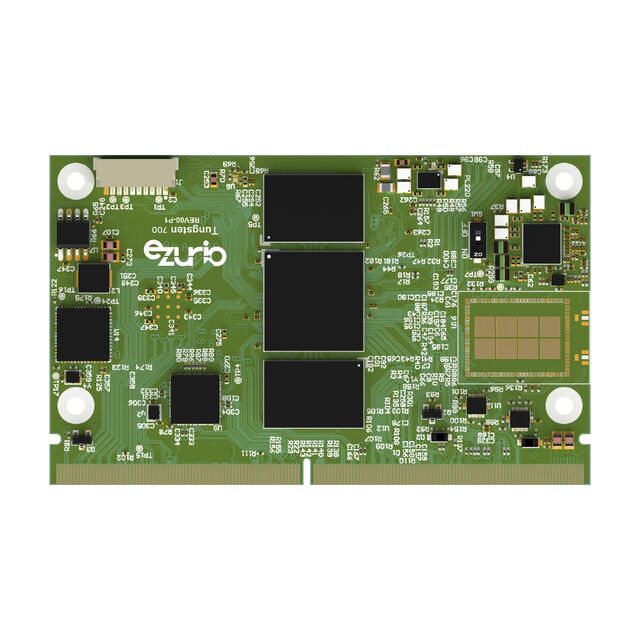

T700_SMARC_SOM_8R16E

Active

Ezurio LLC

SBC 2.2GHZ 2/6 CORE 8GB/0GB RAM

Search across all available documentation for this part.

Active

Ezurio LLC

SBC 2.2GHZ 2/6 CORE 8GB/0GB RAM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	T700_SMARC_SOM_8R16E	TUNGSTEN700 SMARC Series

Core Processor	ARM® Cortex®-A78, ARM® Cortex®-A55	ARM® Cortex®-A78, ARM® Cortex®-A55
Ethernet	GbE (2)	GbE (2)
Expansion Site/Bus	I2C, CAN, Wi-Fi/Bluetooth, UART, LVDS, GPIO, MIPI DSI, MIPI CSI, PCIe, Audio	I2C, CAN, Wi-Fi/Bluetooth, UART, LVDS, GPIO, MIPI DSI, MIPI CSI, PCIe, Audio
Form Factor	SMARC2.1.1	SMARC2.1.1
Number of Cores	2/6	2/6
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
RAM Capacity/Installed	8 GB	4 - 8 GB
RAM Capacity/Installed	-	-
Size / Dimension [x]	81.99 mm	81.99 mm
Size / Dimension [x]	3.228 in	3.228 in
Size / Dimension [y]	1.969 in	1.969 in
Size / Dimension [y]	50.01 mm	50.01 mm
Speed	2.2 GHz	2.2 GHz
Speed	2 GHz	2 GHz
Storage Interface	eMMC, SPI	eMMC, SPI
USB	USB 2.0 Host (4), USB 3.0 Host (2), USB 2.0 OTG (1)	USB 2.0 Host (4), USB 3.0 Host (2), USB 2.0 OTG (1)
Watchdog Timer	False	False

SBC 2.2GHZ 2/6 CORE 8GB/0GB RAM

Part	Speed	Speed	Core Processor	Operating Temperature [Max]	Operating Temperature [Min]	Expansion Site/Bus	RAM Capacity/Installed	RAM Capacity/Installed	Storage Interface	USB	Ethernet	Number of Cores	Form Factor	Watchdog Timer	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
Ezurio LLC T700_SMARC_SOM_8R16E	2.2 GHz	2 GHz	ARM® Cortex®-A55, ARM® Cortex®-A78	70 °C	0 °C	Audio, CAN, GPIO, I2C, LVDS, MIPI CSI, MIPI DSI, PCIe, UART, Wi-Fi/Bluetooth	8 GB	-	eMMC, SPI	USB 2.0 Host (4), USB 2.0 OTG (1), USB 3.0 Host (2)	GbE (2)	2/6	SMARC2.1.1		1.969 in	81.99 mm	50.01 mm	3.228 in
Ezurio LLC T700_SMARC_SOM_4R16E	2.2 GHz	2 GHz	ARM® Cortex®-A55, ARM® Cortex®-A78	70 °C	0 °C	Audio, CAN, GPIO, I2C, LVDS, MIPI CSI, MIPI DSI, PCIe, UART, Wi-Fi/Bluetooth	4 GB	-	eMMC, SPI	USB 2.0 Host (4), USB 2.0 OTG (1), USB 3.0 Host (2)	GbE (2)	2/6	SMARC2.1.1		1.969 in	81.99 mm	50.01 mm	3.228 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 209.96

General part information

Single Board Computer 2GHz, 2.2GHz 2/6 Core 8GB/- RAM ARM® Cortex®-A55, ARM® Cortex®-A78
