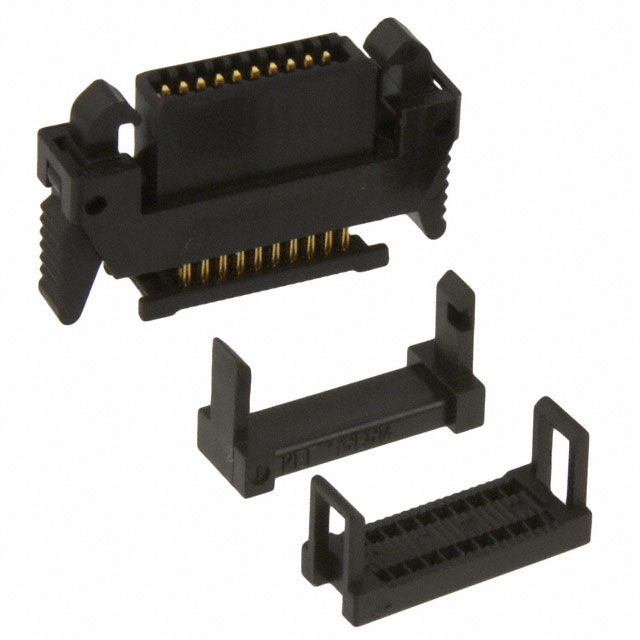

P25E-020S-EA

Active

CONN RCPT 20POS IDC 30AWG GOLD

Search across all available documentation for this part.

Active

CONN RCPT 20POS IDC 30AWG GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RCPT 100POS IDC 30AWG GOLD

Part	Contact Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Contact Finish	Color	Cable Termination	Pitch [x]	Pitch [x]	Wire Gauge	Fastening Type	Connector Type	Features	Number of Rows	Mounting Type	Contact Finish Thickness
3M P25E-100S-TG	Female Socket	100	10 Áin	0.25 Ám	Ribbon Cable	Gold	Black	IDC	0.05 in	1.27 mm	30 AWG	Latch Lock/Eject Hooks	Receptacle	Feed Through	2	Free Hanging (In-Line)
3M P25E-050S-TG	Female Socket	50	10 Áin	0.25 Ám	Ribbon Cable	Gold	Black	IDC	0.05 in	1.27 mm	30 AWG	Latch Lock/Eject Hooks	Receptacle	Feed Through	2	Free Hanging (In-Line)
3M P25E-040S-EA	Female Socket	40			Ribbon Cable	Gold	Black	IDC	0.05 in	1.27 mm	30 AWG	Latch Lock/Eject Hooks	Receptacle	Feed Through	2	Free Hanging (In-Line)	Flash
3M P25E-100S-EA	Female Socket	100			Ribbon Cable	Gold	Black	IDC	0.05 in	1.27 mm	30 AWG	Latch Lock/Eject Hooks	Receptacle	Feed Through	2	Free Hanging (In-Line)	Flash
3M P25E-020S-EA	Female Socket	20			Ribbon Cable	Gold	Black	IDC	0.05 in	1.27 mm	30 AWG	Latch Lock/Eject Hooks	Receptacle	Feed Through	2	Free Hanging (In-Line)	Flash
3M P25E-050S-EA	Female Socket	50			Ribbon Cable	Gold	Black	IDC	0.05 in	1.27 mm	30 AWG	Latch Lock/Eject Hooks	Receptacle	Feed Through	2	Free Hanging (In-Line)	Flash
3M P25E-060S-EA	Female Socket	60			Ribbon Cable	Gold	Black	IDC	0.05 in	1.27 mm	30 AWG	Latch Lock/Eject Hooks	Receptacle	Feed Through	2	Free Hanging (In-Line)	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	240	$ 11.32
