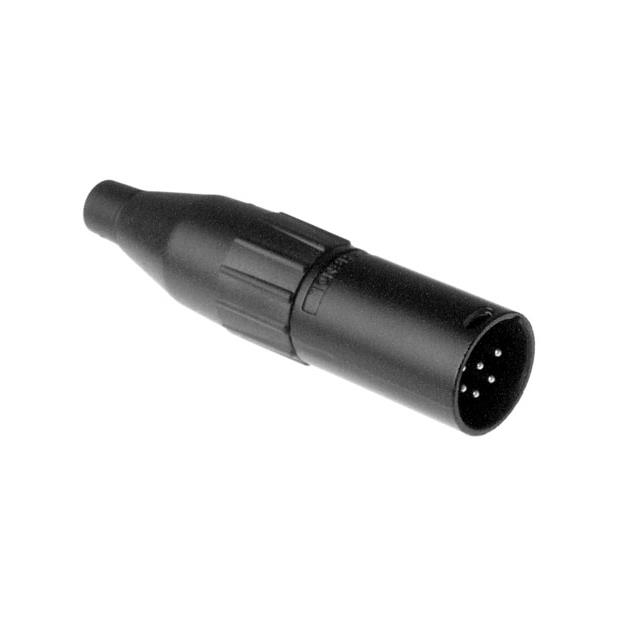

AC6AMB BULK

Active

Amphenol Sine Systems Corp

METAL PLUG STR CORD 6 PIN

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

METAL PLUG STR CORD 6 PIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AC6AMB BULK	AC6AM Series

Applications	Audio	Audio
Backshell Material, Plating	Polyphenylene Ether (PPE)	Polyphenylene Ether (PPE)
Color	Black	Silver, Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Silver	Silver
Contact Material	Brass	Brass
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Latch Holder	Push-Pull, Latch Holder
Features	Cable Clamp, Backshell	Ground, Cable Clamp, Backshell
Ingress Protection	IP40	IP40
Insert Material	-	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	-	Flange
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Black	Nickel, Black
Shell Material	Zinc Die Cast	Zinc Die Cast
Shell Size - Insert	XLR	XLR
Shielding	Unshielded	Shielded, Unshielded

METAL PANEL MOUNT 6 PIN

Part	Fastening Type	Shell Finish	Features	Mounting Feature	Color	Shielding	Contact Finish - Mating	Ingress Protection	Shell Size - Insert	Material Flammability Rating	Shell Material	Number of Positions	Primary Material	Contact Material	Current Rating (Amps)	Orientation	Applications	Insert Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Backshell Material, Plating
Amphenol Sine Systems Corp AC6AMDZ BULK	Push-Pull	Nickel	Ground	Flange	Silver	Shielded	Silver	IP40	XLR	UL94 V-0	Zinc Die Cast	6	Metal	Brass	7.5 A	Keyed	Audio	Glass Filled, Nylon 6/6, Polyamide (PA66)	Male Pins, Receptacle	-25 °C	75 ░C
Amphenol Sine Systems Corp AC6AMB BULK	Latch Holder	Black	Backshell, Cable Clamp		Black	Unshielded	Silver	IP40	XLR	UL94 V-0	Zinc Die Cast	6	Metal	Brass	7.5 A	Keyed	Audio		Male Pins, Receptacle	-25 °C	75 ░C	Free Hanging (In-Line)	Polyphenylene Ether (PPE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	200	$ 7.16

General part information

6 Position Circular Connector Receptacle, Male Pins Solder Cup
