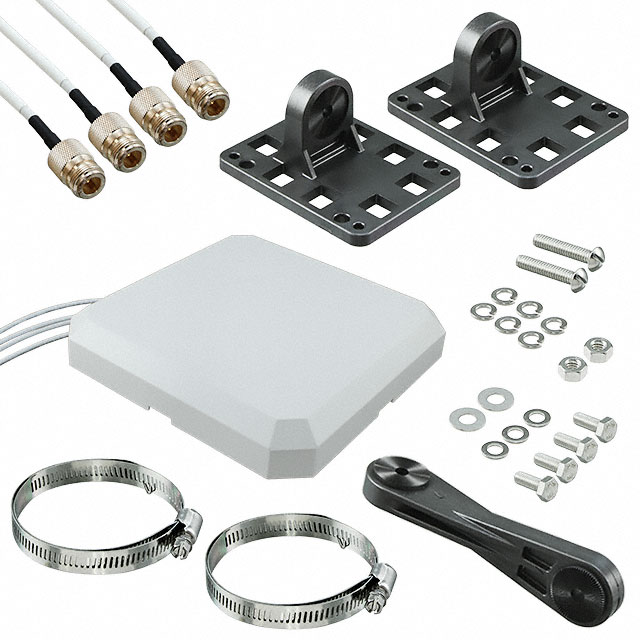

PDQ24496-91NF
ActiveTE Connectivity Raychem Cable Protection
RF ANT 2.4/5.4GHZ PANEL N 91CM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PDQ24496-91NF
ActiveTE Connectivity Raychem Cable Protection
RF ANT 2.4/5.4GHZ PANEL N 91CM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PDQ24496-91NF |
|---|---|
| Antenna Type | Panel |
| Applications | Wi-Fi |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 2.5 GHz, 5.95 GHz |
| Frequency Range [Min] | 4.9 GHz, 2.4 GHz |
| Gain | 6.4 dBi |
| Height (Max) [Max] | 1.614 in |
| Height (Max) [Max] | 41 mm |
| Ingress Protection | IP67 |
| Mounting Type | Bracket Mount |
| Number of Bands | 2 |
| RF Family/Standard | WiFi |
| Termination | N Type Female |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3 | $ 174.72 | |
| 10 | $ 167.34 | |||
| 25 | $ 163.65 | |||
Description
General part information
PDQ24496 Series
RF ANTENNA Wi-Fi Panel N Type Female Bracket Mount
