307-013-454-104

Active

EDAC Inc.

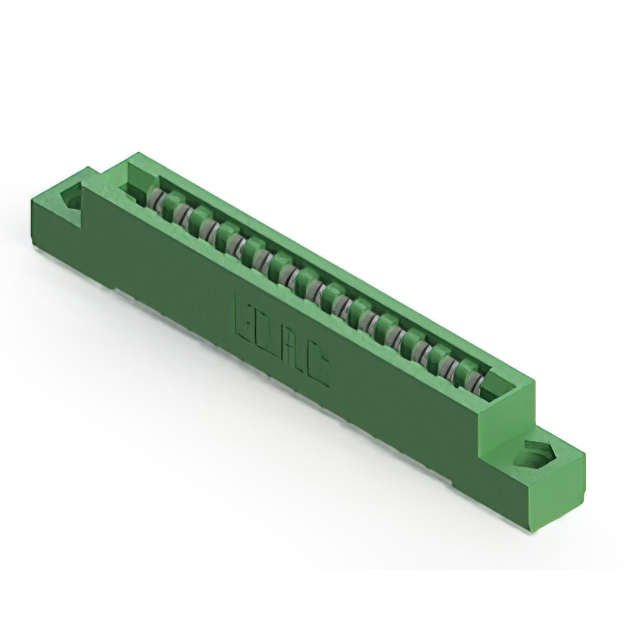

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 13 CONTACTS, PANEL MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

307-013-454-104

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 13 CONTACTS, PANEL MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-013-454-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions/Bay/Row [custom]	13
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

307-013 Series

...

Part	Number of Positions	Number of Positions/Bay/Row [custom]	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Read Out	Gender	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Pitch [x]	Pitch [x]	Color	Termination	Number of Rows	Contact Material	Contact Finish	Mounting Type	Termination Rows	Features
EDAC Inc. 307-013-554-104	26	13	Non Specified - Dual Edge	-40 °C	105 ░C	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Dual	Female	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Polyester Thermoplastic	0.156 in	3.96 mm	Green	Solder Eyelet(s)	2	Copper Alloy	Gold	Surface Mount	1
EDAC Inc. 307-013-445-103	13	13	Non Specified - Single Edge	-40 °C	105 ░C	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Single	Female	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in			Polyester Thermoplastic	0.156 in	3.96 mm	Green	Wire Wrap	1	Copper Alloy	Tin	Through Hole	1
EDAC Inc. 307-013-454-104	26	13	Non Specified - Dual Edge	-40 °C	105 ░C	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Dual	Female	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in			Polyester Thermoplastic	0.156 in	3.96 mm	Green	Solder	2	Copper Alloy	Tin	Through Hole Right Angle	1
EDAC Inc. 307-013-545-101	13	13	Non Specified - Single Edge	-40 °C	105 ░C				Single	Female	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Polyester Thermoplastic	0.156 in	3.96 mm	Green	Wire Wrap	1	Copper Alloy	Gold	Through Hole	1
EDAC Inc. 307-013-521-178	26	13	Non Specified - Dual Edge	-40 °C	105 ░C		4-40 Flush Mount Threaded Insert Top Opening		Dual	Female	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Polyester Thermoplastic	0.156 in	3.96 mm	Green	Solder	2	Copper Alloy	Gold	Through Hole	1	Card Guides
EDAC Inc. 307-013-527-102	13	13	Non Specified - Single Edge	-40 °C	105 ░C	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Single	Female	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Polyester Thermoplastic	0.156 in	3.96 mm	Green	Solder	1	Copper Alloy	Gold	Through Hole	1
EDAC Inc. 307-013-505-102	13	13	Non Specified - Single Edge	-40 °C	105 ░C	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Single	Female	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Polyester Thermoplastic	0.156 in	3.96 mm	Green	Solder Eyelet(s)	1	Copper Alloy	Gold	Through Hole	1
EDAC Inc. 307-013-527-158	13	13	Non Specified - Single Edge	-40 °C	105 ░C		4-40 Flush Mount Threaded Insert Top Opening		Single	Female	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Polyester Thermoplastic	0.156 in	3.96 mm	Green	Solder	1	Copper Alloy	Gold	Through Hole	1	Card Guides
EDAC Inc. 307-013-545-102	13	13	Non Specified - Single Edge	-40 °C	105 ░C	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Single	Female	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Polyester Thermoplastic	0.156 in	3.96 mm	Green	Wire Wrap	1	Copper Alloy	Gold	Through Hole	1
EDAC Inc. 307-013-405-178	13	13	Non Specified - Single Edge	-40 °C	105 ░C		4-40 Flush Mount Threaded Insert Top Opening		Single	Female	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in			Polyester Thermoplastic	0.156 in	3.96 mm	Green	Solder Eyelet(s)	1	Copper Alloy	Tin	Through Hole	1	Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 18.97
Newark	Each	1	$ 22.03
		100	$ 12.86
		250	$ 11.89
		500	$ 11.16
		1000	$ 9.04

Description

General part information

307-013 Series

26 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
