341-092-522-201

Active

EDAC Inc.

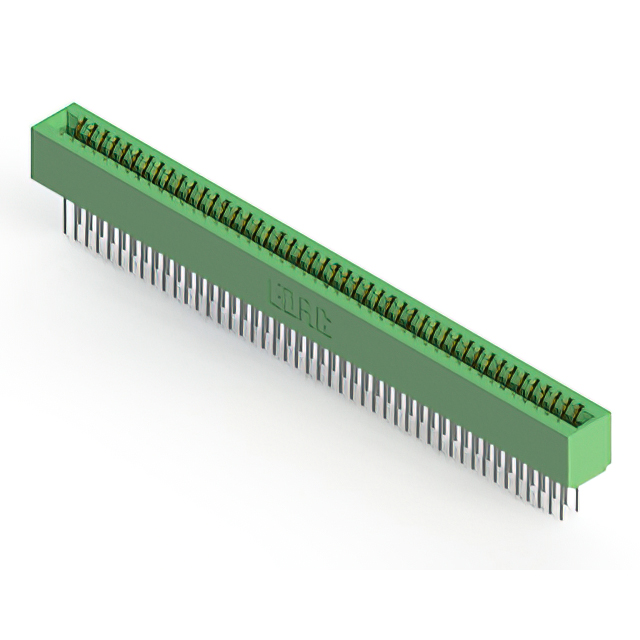

CARD EDGE CONNECTOR, 92 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

341-092-522-201

Active

EDAC Inc.

CARD EDGE CONNECTOR, 92 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-092-522-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	92
Number of Positions/Bay/Row [custom]	46
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

341-092 Series

Part	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Material - Insulation	Color	Mounting Type	Read Out	Flange Feature	Contact Finish	Termination Rows	Number of Positions/Bay/Row [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Pitch [x]	Pitch [x]	Card Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Material	Gender	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 341-092-500-208	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Diallyl Phthalate (DAP)	Green	Through Hole	Dual	4-40 Flush Mount Threaded Insert Top Opening	Gold	2	46	-40 °C	105 ░C	Solder Eyelet(s)	2.54 mm	0.1 in	Non Specified - Dual Edge	92	10 Áin	0.25 Ám	2	Copper Alloy	Female
EDAC Inc. 341-092-520-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Polyester Thermoplastic	Green	Through Hole	Dual		Gold	2	46	-40 °C	105 ░C	Solder	2.54 mm	0.1 in	Non Specified - Dual Edge	92	10 Áin	0.25 Ám	2	Copper Alloy	Female
EDAC Inc. 341-092-556-203	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Polyester Thermoplastic	Green	Board Edge Straddle Mount	Dual	Floating Bobbin Flush Mount	Gold	2	46	-40 °C	105 ░C	Solder	2.54 mm	0.1 in	Non Specified - Dual Edge	92	10 Áin	0.25 Ám	2	Copper Alloy	Female	0.116 in	2.95 mm	Card Extender
EDAC Inc. 341-092-524-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Polyester Thermoplastic	Green	Through Hole	Dual		Gold	2	46	-40 °C	105 ░C	Solder	2.54 mm	0.1 in	Non Specified - Dual Edge	92	10 Áin	0.25 Ám	2	Copper Alloy	Female
EDAC Inc. 341-092-520-207	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Polyester Thermoplastic	Green	Through Hole	Dual	Flush Mount M3 Threaded Insert Top Opening	Gold	2	46	-40 °C	105 ░C	Solder	2.54 mm	0.1 in	Non Specified - Dual Edge	92	10 Áin	0.25 Ám	2	Copper Alloy	Female
EDAC Inc. 341-092-556-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Polyester Thermoplastic	Green	Board Edge Straddle Mount	Dual		Gold	2	46	-40 °C	105 ░C	Solder	2.54 mm	0.1 in	Non Specified - Dual Edge	92	10 Áin	0.25 Ám	2	Copper Alloy	Female			Card Extender
EDAC Inc. 341-092-522-203	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Polyester Thermoplastic	Green	Through Hole	Dual	Floating Bobbin Flush Mount	Gold	2	46	-40 °C	105 ░C	Solder	2.54 mm	0.1 in	Non Specified - Dual Edge	92	10 Áin	0.25 Ám	2	Copper Alloy	Female	0.116 in	2.95 mm
EDAC Inc. 341-092-520-203	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Polyester Thermoplastic	Green	Through Hole	Dual	Floating Bobbin Flush Mount	Gold	2	46	-40 °C	105 ░C	Solder	2.54 mm	0.1 in	Non Specified - Dual Edge	92	10 Áin	0.25 Ám	2	Copper Alloy	Female	0.116 in	2.95 mm
EDAC Inc. 341-092-524-203	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Polyester Thermoplastic	Green	Through Hole	Dual	Floating Bobbin Flush Mount	Gold	2	46	-40 °C	105 ░C	Solder	2.54 mm	0.1 in	Non Specified - Dual Edge	92	10 Áin	0.25 Ám	2	Copper Alloy	Female	0.116 in	2.95 mm
EDAC Inc. 341-092-522-201	1.37 mm	0.054 "	1.78 mm	0.07 in	Semi Bellows	Polyester Thermoplastic	Green	Through Hole	Dual		Gold	2	46	-40 °C	105 ░C	Solder	2.54 mm	0.1 in	Non Specified - Dual Edge	92	10 Áin	0.25 Ám	2	Copper Alloy	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 17.14
Newark	Each	1	$ 19.13
		100	$ 11.50
		250	$ 9.79
		500	$ 7.75
		1000	$ 6.70

Description

General part information

341-092 Series

92 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
