3-101-012
ActiveSCHURTER Inc.

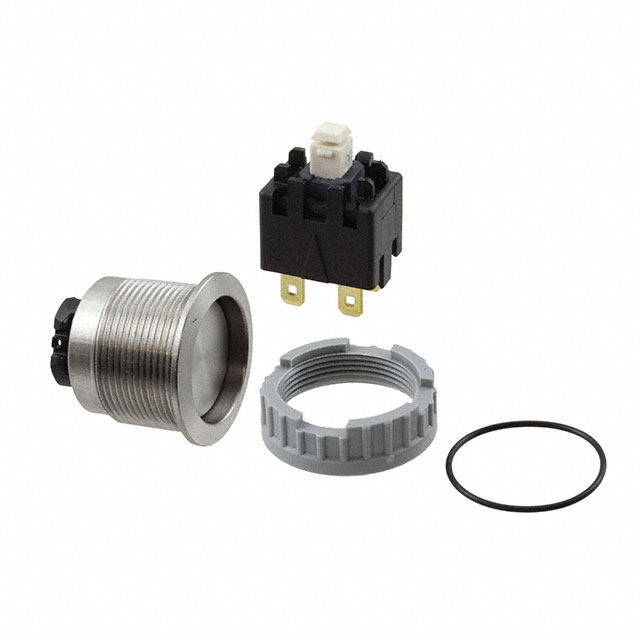

SWITCH PUSHBUTTON DPST 16A 250V
Deep-Dive with AI
Search across all available documentation for this part.
3-101-012
ActiveSCHURTER Inc.
SWITCH PUSHBUTTON DPST 16A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-101-012 | 3-101 Series |
|---|---|---|
| Accomodates a Fuse | - | False |
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Round, Button | Round, Button, Flush |
| Approval Agency | - | ENEC, CSA, CCC, UL, VDE, CQC, cURus |
| Circuit | DPST | DPST, SPST, SPST-NO |
| Color - Actuator/Cap | Silver | Clear, Silver |
| Connector Style | - | IEC 320-2-2/F, IEC 320-C14 |
| Connector Type | - | Receptacle, Female Sockets, Male Blades, Receptacle |
| Current Rating - Appliance Inlet | - | 10 A |
| Current Rating - Filter | - | 6 - 10 A |
| Current Rating (Amps) | 16 A | 16 - 100 A |
| Electrical Life | 20000 Steps | 20000 Steps |
| Features | - | Finger Guide, Ceramic Actuator, Light Pipe, V-Lock Notch, Shielded |
| Filter Type | - | Unfiltered - Commercial, Filtered (EMI, RFI) - Commercial |
| Illumination Type, Color | - | White, LED, Green/Red, Blue, Red, Green |
| Illumination Voltage (Nominal) | - | 24 V |
| Illumination Voltage (Nominal) | - | 28 VDC |
| Illumination Voltage (Nominal) | - | 5 VDC |
| Ingress Protection | IP64 - Dust Tight, Water Resistant | IP64 - Dust Tight, Water Resistant, IP67 - Dust Tight, Waterproof, IP40 |
| Material Flammability Rating | - | UL94 V-0 |
| Mechanical Life | 100000 Cycles | 100000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front, Panel Mount, Snap-In, Flange |
| Operating Temperature [Max] | 85 °C | 60 - 85 °C |
| Operating Temperature [Min] | -20 C | -40 - -20 C |
| Panel Cutout Dimensions | - | 29 - 32.5 mm |
| Panel Cutout Dimensions | - | 21.5 - 24.9 mm |
| Panel Cutout Dimensions [diameter] | 22.1 mm | 16.1 - 22.1 mm |
| Panel Thickness | - | 2 - 8 mm |
| Panel Thickness | - | 0.079 - 0.315 in |
| Switch Function | Off-On | Off-On, Off-Mom |
| Termination | - | 0.25 in |
| Termination | - | 6.3 mm |
| Termination | - | Quick Connect |
| Termination Style | Quick Connect - 0.187" (4.7mm) | Quick Connect - 0.187" (4.7mm), Wire Leads |
| Type | Anti-Vandal | Anti-Vandal, Illuminated, Capacitive |
| Voltage Rating - AC | 250 V | 42 - 250 V |
| Voltage Rating - Appliance Inlet | - | 250 VAC |
| Voltage Rating - DC | 30 V | 30 - 60 V |
3-101 Series
SWITCH PUSHBUTTON DPST 16A 250V
| Part | Type | Voltage Rating - DC | Termination Style | Panel Cutout Dimensions [diameter] | Switch Function | Actuator Type | Illumination Voltage (Nominal) | Actuator Marking | Current Rating (Amps) | Voltage Rating - AC | Mechanical Life | Color - Actuator/Cap | Ingress Protection | Mounting Type | Circuit | Illumination Type, Color | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Voltage (Nominal) [Max] | Illumination Voltage (Nominal) [Min] | Features | Current Rating - Appliance Inlet | Accomodates a Fuse | Connector Style | Panel Thickness | Panel Thickness | Voltage Rating - Appliance Inlet | Filter Type | Approval Agency | Connector Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Material Flammability Rating | Termination | Termination | Termination | Current Rating - Filter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 3-101-041 | Anti-Vandal, Illuminated | 30 V | Quick Connect - 0.187" (4.7mm) | 22.1 mm | Off-On | Button, Round | 24 V | No Marking | 16 A | 250 V | 100000 Cycles | Clear | IP64 - Dust Tight, Water Resistant | Panel Mount, Front | DPST | LED, White | 20000 Steps | 85 °C | -20 C | |||||||||||||||||||
SCHURTER Inc. 3-101-398 | Capacitive, Illuminated | 60 VDC | Wire Leads | 16.1 mm | Off-On | Button, Flush, Round | No Marking | 100 mA | 42 V | Clear | IP67 - Dust Tight, Waterproof | Panel Mount, Front | SPST | Green/Red, LED | 60 °C | -40 °C | 28 VDC | 5 VDC | Ceramic Actuator, Finger Guide | |||||||||||||||||||
SCHURTER Inc. 3-101-001 | Anti-Vandal | 30 V | Quick Connect - 0.187" (4.7mm) | 22.1 mm | Off-On | Button, Round | No Marking | 16 A | 250 V | 100000 Cycles | Silver | IP64 - Dust Tight, Water Resistant | Panel Mount, Front | SPST | 20000 Steps | 85 °C | -20 C | |||||||||||||||||||||
SCHURTER Inc. 3-101-018 | Anti-Vandal, Illuminated | 30 V | Quick Connect - 0.187" (4.7mm) | 22.1 mm | Off-On | Button, Round | 24 V | No Marking | 16 A | 250 V | 100000 Cycles | Silver | IP64 - Dust Tight, Water Resistant | Panel Mount, Front | DPST | Blue, LED | 20000 Steps | 85 °C | -20 C | |||||||||||||||||||
SCHURTER Inc. 3-101-686 | Panel Mount, Snap-In | Light Pipe, V-Lock Notch | 10 A | IEC 320-2-2/F | 2 mm | 0.079 in | 250 VAC | Unfiltered - Commercial | CCC, CSA, ENEC, UL, VDE | Receptacle, Female Sockets | 32.5 mm | 24.9 mm | UL94 V-0 | |||||||||||||||||||||||||
SCHURTER Inc. 3-101-421 | Capacitive, Illuminated | 60 VDC | Wire Leads | 19.1 mm | Off-On | Button, Flush, Round | No Marking | 100 mA | 42 V | Silver | IP67 - Dust Tight, Waterproof | Panel Mount, Front | SPST | Green/Red, LED | 60 °C | -40 °C | 28 VDC | 5 VDC | ||||||||||||||||||||
SCHURTER Inc. 3-101-416 | Capacitive, Illuminated | 60 VDC | Wire Leads | 19.1 mm | Off-On | Button, Flush, Round | No Marking | 100 mA | 42 V | Clear | IP67 - Dust Tight, Waterproof | Panel Mount, Front | SPST | Green/Red, LED | 60 °C | -40 °C | 28 VDC | 5 VDC | Ceramic Actuator | |||||||||||||||||||
SCHURTER Inc. 3-101-009 | Anti-Vandal, Illuminated | 30 V | Quick Connect - 0.187" (4.7mm) | 19.1 mm | Off-On | Button, Round | 24 V | No Marking | 16 A | 250 V | 100000 Cycles | Clear | IP64 - Dust Tight, Water Resistant | Panel Mount, Front | SPST | Blue, LED | 20000 Steps | 85 °C | -20 C | |||||||||||||||||||
SCHURTER Inc. 3-101-397 | Capacitive, Illuminated | 60 VDC | Wire Leads | 16.1 mm | Off-Mom | Button, Flush, Round | No Marking | 100 mA | 42 V | Clear | IP67 - Dust Tight, Waterproof | Panel Mount, Front | SPST-NO | Blue, Green, LED, Red | 60 °C | -40 °C | 28 VDC | 5 VDC | Ceramic Actuator, Finger Guide | |||||||||||||||||||
SCHURTER Inc. 3-101-024 | Anti-Vandal, Illuminated | 30 V | Quick Connect - 0.187" (4.7mm) | 19.1 mm | Off-On | Button, Round | 24 V | No Marking | 16 A | 250 V | 100000 Cycles | Clear | IP64 - Dust Tight, Water Resistant | Panel Mount, Front | DPST | Green, LED | 20000 Steps | 85 °C | -20 C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.34 | |
| 50 | $ 19.90 | |||
Description
General part information
3-101 Series
Pushbutton Switch DPST Anti-Vandal Panel Mount, Front
