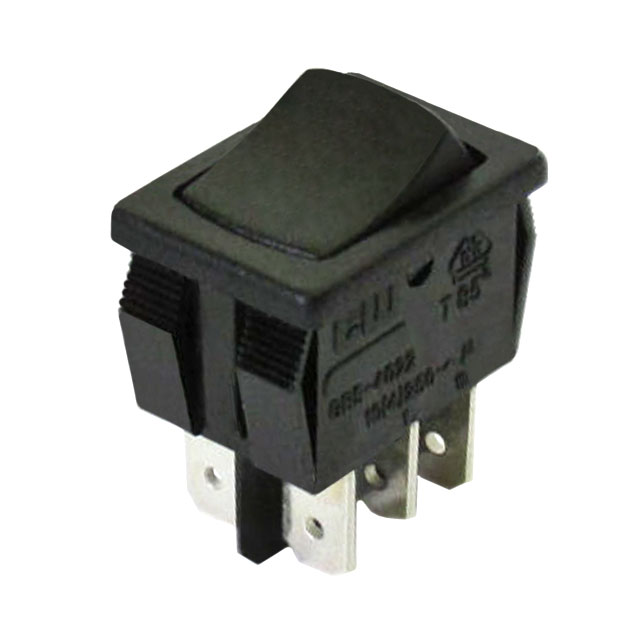

GRS-4022-0002

Active

CW Industries

SWITCH ROCKER DPDT 16A 125V

Deep-Dive with AI

Search across all available documentation for this part.

GRS-4022-0002

Active

CW Industries

SWITCH ROCKER DPDT 16A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GRS-4022-0002

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	16 A
Electrical Life	25000 Steps
Features	Terminal Barriers
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions	Rectangular
Panel Cutout Dimensions [x]	19.2 mm
Panel Cutout Dimensions [y]	12.9 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

GRS-4022 Series

Part	Color - Actuator/Cap	Actuator Marking	Actuator Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Circuit	Current Rating (Amps)	Mounting Type	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Mechanical Life	Electrical Life	Voltage Rating - AC	Features
CW Industries GRS-4022-0013	Black	O -	Concave (Curved)	12.9 mm	Rectangular	19.2 mm	DPDT	16 A	Panel Mount Snap-In	On-On	-20 C	105 ░C	Quick Connect - 0.187" (4.7mm)	100000 Cycles	25000 Steps	125 V
CW Industries GRS-4022-0008	Black	White Rectangle on End	Concave (Curved)	12.9 mm	Rectangular	19.2 mm	DPDT	16 A	Panel Mount Snap-In	On-On	-20 C	105 ░C	Quick Connect - 0.187" (4.7mm)	25000 Steps	25000 Steps	125 V	Terminal Barriers
CW Industries GRS-4022-0021	Black	O I	Concave (Curved)	12.9 mm	Rectangular	19.2 mm	DPDT	16 A	Panel Mount Snap-In	On-On	-20 C	105 ░C	Quick Connect - 0.110" (2.8mm)	25000 Steps	25000 Steps	125 V	Terminal Barriers
CW Industries GRS-4022-0002	Black	No Marking	Concave (Curved)	12.9 mm	Rectangular	19.2 mm	DPDT	16 A	Panel Mount Snap-In	On-On	-20 C	105 ░C	Quick Connect - 0.187" (4.7mm)	25000 Steps	25000 Steps	125 V	Terminal Barriers
CW Industries GRS-4022-1600	Black	No Marking	Concave (Curved)	12.9 mm	Rectangular	19.2 mm	DPDT	16 A	Panel Mount Snap-In	On-On	-20 C	105 ░C	Quick Connect - 0.187" (4.7mm)	100000 Cycles	25000 Steps	125 V
CW Industries GRS-4022A-0001	Black	No Marking	Concave (Curved)	12.9 mm	Rectangular	19.2 mm	DPDT	8 A	Panel Mount Snap-In	On-Mom	-20 C	105 ░C	Quick Connect - 0.187" (4.7mm)	25000 Steps	25000 Steps	125 V	Terminal Barriers
CW Industries GRS-4022-0003	Black	O I	Concave (Curved)	12.9 mm	Rectangular	19.2 mm	DPDT	16 A	Panel Mount Snap-In	On-On	-20 C	105 ░C	Quick Connect - 0.187" (4.7mm)	25000 Steps	25000 Steps	125 V	Terminal Barriers
CW Industries GRS-4022-0019	Black	No Marking	Concave (Curved)	12.9 mm	Rectangular	19.2 mm	DPDT	16 A	Panel Mount Snap-In	On-On	-20 C	105 ░C	Quick Connect - 0.110" (2.8mm)	25000 Steps	25000 Steps	125 V	Terminal Barriers
CW Industries GRS-4022-0001	Black	No Marking	Concave (Curved)	12.9 mm	Rectangular	19.2 mm	DPDT	8 A	Panel Mount Snap-In	On-On	-20 C	105 ░C	Quick Connect - 0.187" (4.7mm)	25000 Steps	25000 Steps	125 V	Terminal Barriers

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 1.22

Description

General part information

GRS-4022 Series

Rocker Switch DPDT 16A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available
