684-36-S

Active

E-Z-Hook

TEST LEAD GATOR TO GATR 36" 10PC

Search across all available documentation for this part.

Active

E-Z-Hook

TEST LEAD GATOR TO GATR 36" 10PC

Technical Specifications

Parameters and characteristics commom to parts in this series

TEST LEAD GATOR TO GATOR 36"

Part	Cable Length	Cable Length	1st Connector	Temperature Range	Temperature Range	Contents	Current Rating (Amps)	Wire Gauge	Voltage - Rated	Voltage - Rated	Material - Insulation	2nd Connector	Contents
E-Z-Hook 684-36YEL	36 in	914.4 mm	Alligator Clip, Insulated	105 °C	221 °F	1 Lead, Yellow	4 A	18 AWG	5 kV	5 kV	Poly-Vinyl Chloride (PVC)	Alligator Clip, Insulated
E-Z-Hook 684-36-S	36 in	914.4 mm	Alligator Clip, Insulated	105 °C	221 °F	Multiple Colors	4 A	18 AWG	5 kV	5 kV	Poly-Vinyl Chloride (PVC)	Alligator Clip, Insulated	10 Leads
E-Z-Hook 684-36GRN	36 in	914.4 mm	Alligator Clip, Insulated	105 °C	221 °F		4 A	18 AWG	5 kV	5 kV	Poly-Vinyl Chloride (PVC)	Alligator Clip, Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

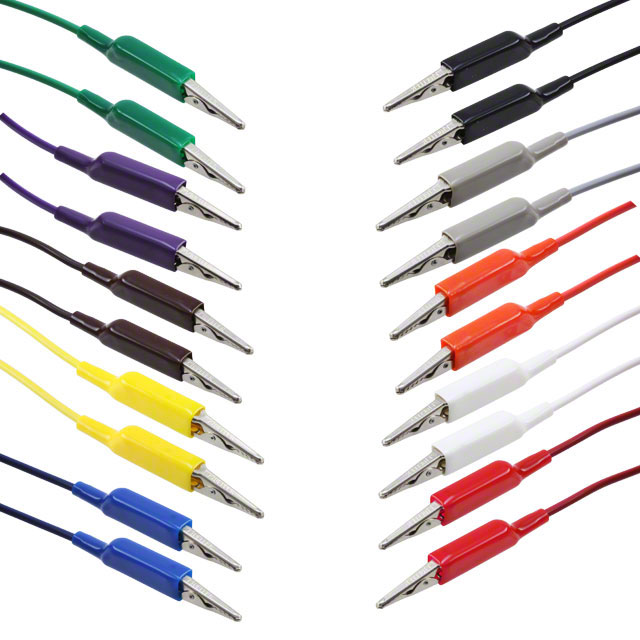

36.0" (914.40mm) Alligator Clip, Insulated To Alligator Clip, Insulated Test Lead 5000VDC (5kV) 10 Leads, Multiple Colors
