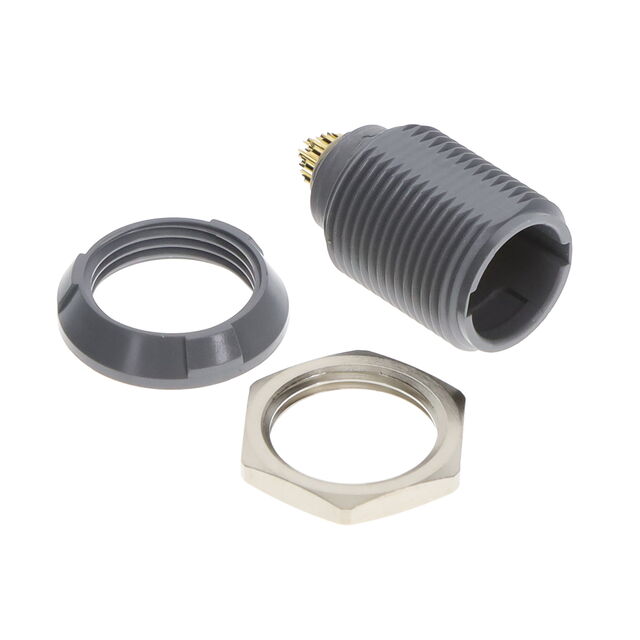

CONN RCPT MALE 14P GOLD SLDR CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT MALE 14P GOLD SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	PKH.M1.4SL.AG	PKH.M1 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray	Gray, Blue, Red
Connector Type	Receptacle, Male Pins	Receptacle, Female Sockets, Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	2 A	2 - 3 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut
Mounting Type	-	Through Hole, Right Angle, Panel Mount
Number of Positions	14	10 - 14
Operating Temperature [Max]	170 °C	150 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	H	H
Primary Material	Plastic	Plastic
Shell Material	Polyetherimide (PEI)	Polysulfone (PSU), Polyetherimide (PEI)
Shell Size - Insert	M14	M10, M14
Shielding	Unshielded	Unshielded
Termination	-	Solder

CONN RCPT FMALE 10POS GOLD SLDR

Part	Shell Size - Insert	Termination	Ingress Protection	Applications	Contact Finish - Mating	Current Rating (Amps)	Color	Shell Material	Number of Positions	Connector Type	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Shielding	Orientation	Mounting Type	Primary Material	Fastening Type
LEMO PKH.M1.0GL.VA	M10	Solder	IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	3 A	Blue, Gray	Polysulfone (PSU)	10	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	150 °C	-50 °C	Front and Rear Side Nut	Unshielded	H	Panel Mount, Right Angle, Through Hole	Plastic	Detent Lock, Push-Pull
LEMO PKH.M1.4SL.AG	M14		IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	2 A	Gray	Polyetherimide (PEI)	14	Male Pins, Receptacle	Polyetheretherketone (PEEK)	170 °C	-50 °C	Front and Rear Side Nut	Unshielded	H		Plastic	Detent Lock, Push-Pull
LEMO PKH.M1.0SL.AG	M10		IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	3 A	Gray	Polyetherimide (PEI)	10	Male Pins, Receptacle	Polyetheretherketone (PEEK)	170 °C	-50 °C	Front and Rear Side Nut	Unshielded	H		Plastic	Detent Lock, Push-Pull
LEMO PKH.M1.4SL.AR	M14		IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	Gold	2 A	Gray, Red	Polyetherimide (PEI)	14	Male Pins, Receptacle	Polyetheretherketone (PEEK)	170 °C	-50 °C	Front and Rear Side Nut	Unshielded	H		Plastic	Detent Lock, Push-Pull
