8759 0601000

Active

Belden Inc.

1 PR#20 PVC SHLD PVC

Search across all available documentation for this part.

Active

Belden Inc.

1 PR#20 PVC SHLD PVC

Technical Specifications

Parameters and characteristics for this part

Specification	8759 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	5.06 mm
Jacket (Insulation) Diameter [diameter]	0.199 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style CMG
Shield Coverage	90 %
Shield Material	Copper, Tinned
Shield Type	Spiral
Usage	Audio, Instrumentation
Voltage	300 V
Wire Gauge	20 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Usage	Jacket Color	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Length	Length	Conductor Material	Conductor Insulation	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Cable Type	Ratings	Shield Coverage	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]
Belden Inc. 8759 060U1000	0.025 in	0.635 mm	Poly-Vinyl Chloride (PVC)	Audio Instrumentation	Chrome	Spiral	28	7	20 AWG	1000 ft	304.8 m	Copper Tinned	Poly-Vinyl Chloride (PVC)	Copper Tinned	5.06 mm	0.199 in	2	Multi-Conductor	UL Style CMG	90 %	300 V	-20 C	80 C
Belden Inc. 8759 060U500	0.025 in	0.635 mm	Poly-Vinyl Chloride (PVC)	Audio Instrumentation	Chrome	Spiral	28	7	20 AWG			Copper Tinned	Poly-Vinyl Chloride (PVC)	Copper Tinned	5.06 mm	0.199 in	2	Multi-Conductor	UL Style CMG	90 %	300 V	-20 C	80 C	500 '	152.4 m
Belden Inc. 8759 0601000	0.025 in	0.635 mm	Poly-Vinyl Chloride (PVC)	Audio Instrumentation	Chrome	Spiral	28	7	20 AWG	1000 ft	304.8 m	Copper Tinned	Poly-Vinyl Chloride (PVC)	Copper Tinned	5.06 mm	0.199 in	2	Multi-Conductor	UL Style CMG	90 %	300 V	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.71

General part information

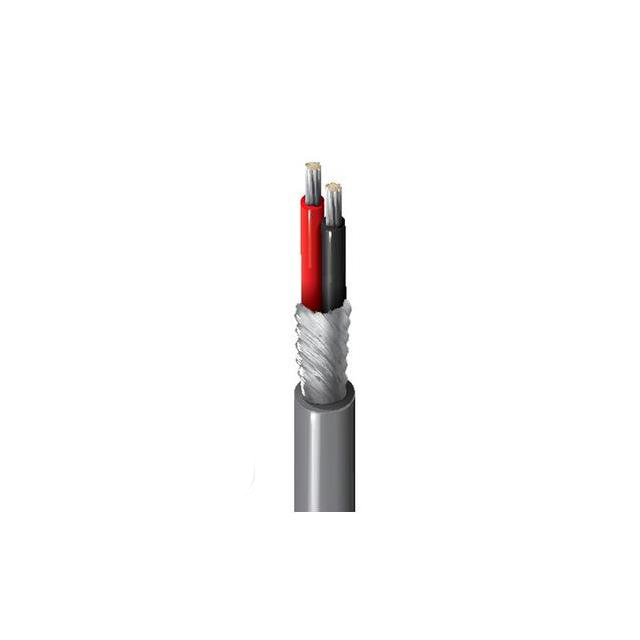

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 20 AWG Spiral 1000.0' (304.8m)
