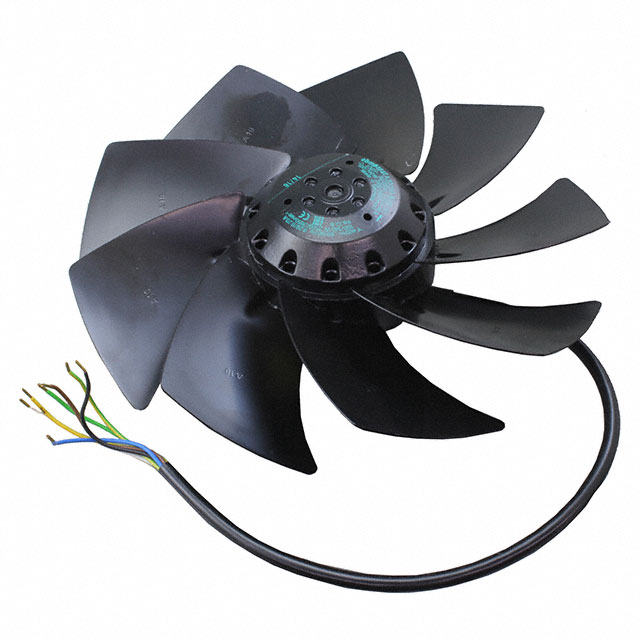

Specification	A2D250-AI02-01

Air Flow	1148.6 CFM
Approval Agency	EAC, CE, CCC
Bearing Type	Ball
Current Rating (Maximum)	0.4 A
Current Rating (Minimum)	0.23 A
Fan Type	3 Phase, Tubeaxial
Features	Dual Voltage
Ingress Protection	IP44
Material - Blade	Steel
Noise	70 dB
Operating Temperature (Max)	113 °F
Operating Temperature (Min)	-13 °F
Power (Watts)	140 W
RPM	2650 RPM
Size / Dimension Diameter	250 mm
Size / Dimension Shape	Round
Static Pressure	0.602 in H2O
Termination	7 Wire Leads with Splice Terminals
Termination Leads Count	7
Termination Type	Wire Leads with Splice Terminals
Voltage - Rated (Option 1)	230 VAC
Voltage - Rated (Option 2)	400 VAC
Width	83 mm

A2D250 Series

Part	Approval Agency	Ingress Protection	Power (Watts)	Termination Type	Termination	Termination Leads Count	Bearing Type	RPM	Noise	Size / Dimension Diameter	Size / Dimension Shape	Air Flow	Voltage - Rated	Static Pressure	Fan Type	Width	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Material - Blade	Voltage - Rated (Option 2)	Voltage - Rated (Option 1)	Features	Current Rating (Minimum)	Current Rating (Maximum)	Weight
ebm-papst Inc. A2D250-AA02-01	CCC CE EAC	IP44	160 W	Wire Leads with Splice Terminals	7 Wire Leads with Splice Terminals	7	Ball	2950 RPM	72 dB	250 mm	Round	992.5 CFM	400 V	1.204 in H2O	3 Phase Tubeaxial	83 mm	104 °F	-13 °F	0.26 A	Steel
ebm-papst Inc. A2D250-AH02-01	CCC CE EAC	IP44	145 W	Wire Leads with Splice Terminals	7 Wire Leads with Splice Terminals	7	Ball	2650 RPM	69 dB	250 mm	Round	1077.9 CFM		0.602 in H2O	3 Phase Tubeaxial	83 mm	113 °F	-13 °F		Steel	400 VAC	230 VAC	Dual Voltage	0.23 A	0.39 A
ebm-papst Inc. A2D250-AI14-10	CE CSA UL	IP44	140 W	Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals	4	Ball	2580 RPM		250 mm	Round		480 VAC	0.44 in H2O	3 Phase Tubeaxial	83 mm	60 °C	-25 °C	0.38 A	Steel
ebm-papst Inc. A2D250-AD26-05	CCC CE CSA UL	IP44	230 W	Wire Leads with Splice Terminals	4 Wire Leads with Splice Terminals	4	Ball	2920 RPM		250 mm	Round		480 VAC	0.743 in H2O	3 Phase Tubeaxial	83 mm			320 mA	Steel
ebm-papst Inc. A2D250-AI02-01	CCC CE EAC	IP44	140 W	Wire Leads with Splice Terminals	7 Wire Leads with Splice Terminals	7	Ball	2650 RPM	70 dB	250 mm	Round	1148.6 CFM		0.602 in H2O	3 Phase Tubeaxial	83 mm	113 °F	-13 °F		Steel	400 VAC	230 VAC	Dual Voltage	0.23 A	0.4 A
ebm-papst Inc. A2D250-AA02-18	CCC CE EAC	IP44	160 W	Wire Leads	7 Wire Leads	7	Ball	2950 RPM		250 mm	Round			1.204 in H2O	3 Phase Tubeaxial	83 mm	104 °F	-13 °F		Steel	400 VAC	230 VAC	Dual Voltage	0.26 A	0.45 A
ebm-papst Inc. A2D250-AA02-47	CE	IP44	160 W	Wire Leads	7 Wire Leads	7	Ball	2950 RPM		250 mm	Round			1.204 in H2O	3 Phase Tubeaxial	82.5 mm	104 °F	-13 °F	0.26 A	Steel	400 VAC	230 VAC	Dual Voltage			4.8 lbs
ebm-papst Inc. A2D250-AA06-71	CE	IP44	150 W		Terminal Block		Ball	2900 RPM		250 mm	Round			0.502 in H2O	3 Phase Tubeaxial	83 mm	149 °F	-13 °F		Steel	460 VAC	265 VAC	Dual Voltage	0.22 A	0.38 A
ebm-papst Inc. A2D250-AA06-52	CSA UL	IP44	150 W	9 Wire Leads with Splice Terminals Wire Leads with Splice Terminals		9 leads	Ball	2900 RPM		250 mm	Round			0.502 in H2O	3 Phase Tubeaxial	83 mm	149 °F	-13 °F		Steel	460 VAC	266 VAC	Dual Voltage Thermal Overload Protector (TOP)	0.22 A	0.38 A
ebm-papst Inc. A2D250-AA02-02	CCC CE EAC	IP44	160 W	Wire Leads with Splice Terminals	7 Wire Leads with Splice Terminals	7	Ball	2950 RPM	75 dB	250 mm	Round	1086.7 CFM	400 V	1.204 in H2O	3 Phase Tubeaxial	83 mm	104 °F	-13 °F	0.26 A	Steel
