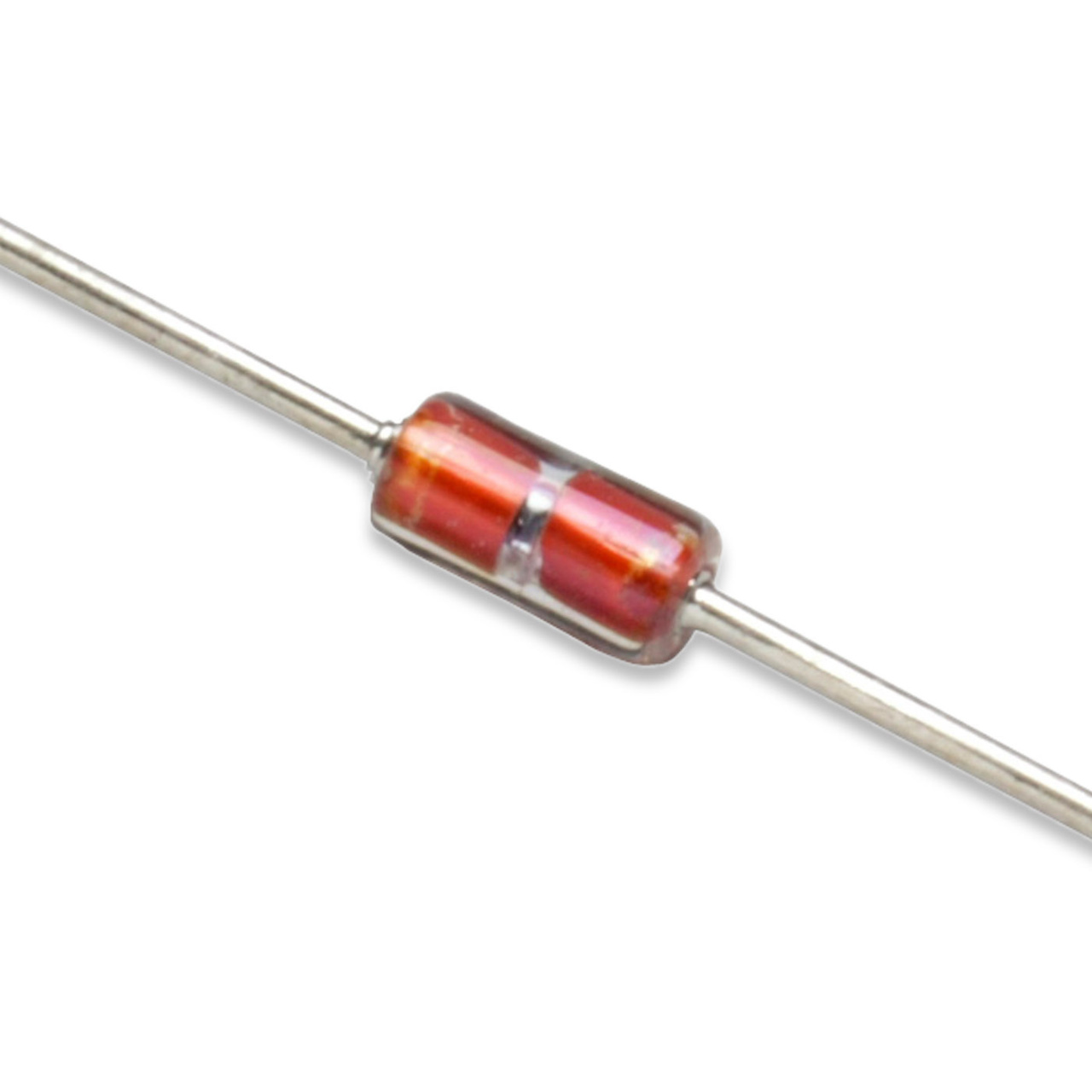

104JM1A
ActiveTHERM NTC 100KOHM 3892K DO35

104JM1A
ActiveTHERM NTC 100KOHM 3892K DO35
Description
General part information
104JM1A Series
Littelfuse low cost interchangeable glass encapsulated thermistors are manufactured using super stable, precision NTC chips which are hermetically sealed in a glass (DO-35 diode style) package. The result is a device which exhibits excellent long term reliability and stability even when subjected to severe environmental or thermal conditions. They are well suited for uses where their interchangeability eliminates the necessity for costly individual circuit calibration. Their uniform dimensions and axial lead configuration make them especially suitable for use with automatic insertion equipment. Options: Special lead forms Non-standard resistance values and tolerances Point matched at specified temperatures Tape and reel packaging
Technical Specifications
Parameters and characteristics for this part
| Specification | 104JM1A |
|---|---|
| B0/50 Temperature | 3892 K |
| Length - Lead Wire | 1 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 300 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial, DO-35, DO-204AH |
| Resistance (Ohms) | 100 kOhm |
| Resistance Tolerance (%) | 5 % |
