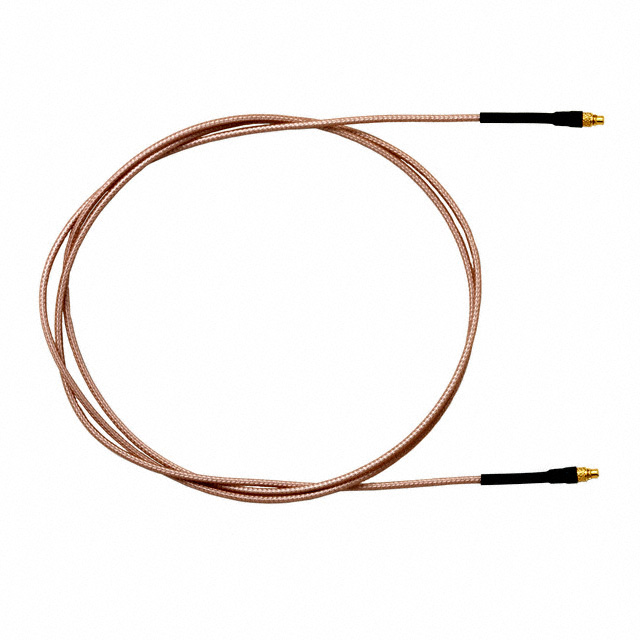

73077-UU-24
ObsoletePomona Electronics
CBL ASSY MMCX PLUG TO PLUG 24"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
73077-UU-24
ObsoletePomona Electronics
CBL ASSY MMCX PLUG TO PLUG 24"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 73077-UU-24 |
|---|---|
| 1st Connector | MMCX Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MMCX Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 24 " |
| Length | 609.6 mm |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | MMCX to MMCX |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
73077 Series
Cable Assembly Coaxial MMCX to MMCX RG-178B 24.00" (609.60mm)
