R143654000

Active

Radiall USA, Inc.

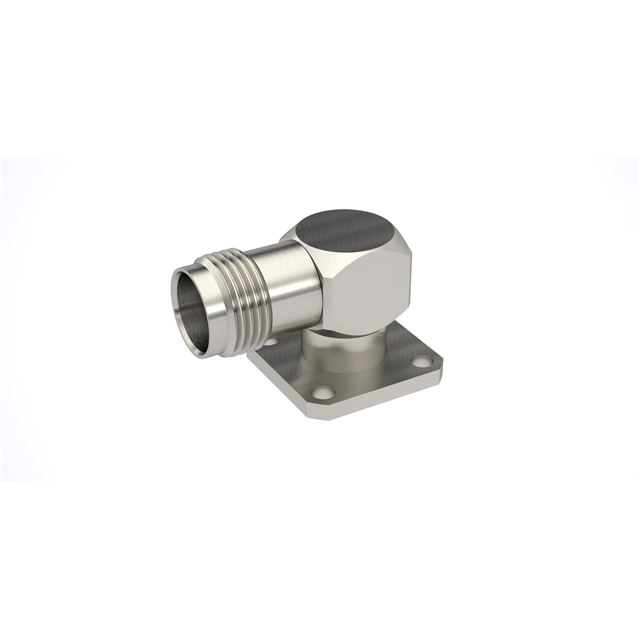

RF TNC CONNECTOR, FEMALE, PANEL MOUNT, SOLDER TERMINAL, RECEPTACLE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF TNC CONNECTOR, FEMALE, PANEL MOUNT, SOLDER TERMINAL, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	R143654000

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper, Nickel Steel
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Mating Cycles	Housing Color	Number of Ports	Center Contact Material	Connector Type	Shield Termination	Center Contact Plating	Body Finish	Contact Termination	Frequency - Max [Max]	Dielectric Material	Connector Style	Body Material	Mounting Type	Impedance	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating
Radiall USA, Inc. R143654000	500	Silver	1	Beryllium Copper Nickel Steel	Female Socket Jack	Solder	Gold	Nickel	Solder Cup	11 GHz	Polytetrafluoroethylene (PTFE)	TNC	Brass	Panel Mount Right Angle	50 Ohms	Flange	-65 ░C	165 °C	500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 51.09

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount, Right Angle Solder Cup
