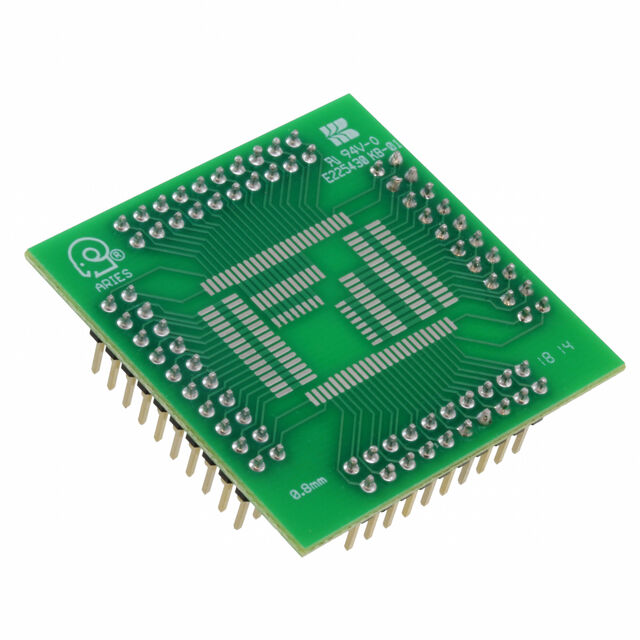

LCQT-QFP0.8-32

Active

Aries Electronics

SOCKET ADAPTER MULT PKG TO 32QFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LCQT-QFP0.8-32

Active

Aries Electronics

SOCKET ADAPTER MULT PKG TO 32QFP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	45	$ 10.64

Description

General part information

LCQT-QF Series

IC Socket Adapter Multiple Packages To QFP Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LCQT-QFP0.8-32	LCQT-QF Series

Board Material	FR4 Epoxy Glass	FR4 Epoxy Glass
Board Thickness	-	0.062 in
Board Thickness	-	0.0625 in
Board Thickness	-	1.57 mm
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Post	Flash	Flash
Contact Material - Post [custom]	Brass	Brass
Convert From (Adapter End)	Multiple Packages	Multiple Packages
Convert To (Adapter End)	QFP	QFP
Housing Material	Polyester	Polyester
Material	-	FR4 Epoxy Glass
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Pins	32	32 - 80 pins
Number of Positions	-	44 - 64
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package Accepted	-	QFP
Pitch	-	0.5 - 0.8 mm
Pitch	-	0.02 - 0.031 in
Pitch - Mating	0.031 in	0.02 - 0.031 in
Pitch - Mating	0.8 mm	0.5 - 0.8 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Proto Board Type	-	SMD to DIP
Size / Dimension	-	38.1 - 43.18 mm
Size / Dimension	-	1.5 - 1.7 "
Size / Dimension	-	38.1 - 43.18 mm
Size / Dimension	-	1.5 - 1.7 "
Termination	Solder	Solder
Termination Post Length [x]	0.236 in	0.236 in
Termination Post Length [x]	6 mm	6 mm

LCQT-QF Series

SOCKET ADAPTER MULT PKG TO 64QFP

Part	Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Board Thickness	Board Thickness	Board Thickness	Number of Positions	Pitch [x]	Pitch [x]	Proto Board Type	Package Accepted	Pitch - Post	Pitch - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Post [custom]	Material Flammability Rating	Termination Post Length [x]	Termination Post Length [x]	Convert To (Adapter End)	Board Material	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Number of Pins	Mounting Type	Contact Finish - Post	Convert From (Adapter End)	Housing Material	Termination
Aries Electronics LCQT-QFP0.8-64	FR4 Epoxy Glass	43.18 mm	1.7 "	43.18 mm	1.7 "	0.062 in	0.0625 in	1.57 mm	64	0.8 mm	0.031 in	SMD to DIP	QFP
Aries Electronics LCQT-QFP0.5-60														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.02 in	0.5 mm	60 pins	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.65-52														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.026 in	0.65 mm	52	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.8-80														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.031 in	0.8 mm	80	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.65-80														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.026 in	0.65 mm	80	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.5-80														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.02 in	0.5 mm	80	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.5-40-1														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.02 in	0.5 mm	40	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.5-40														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.02 in	0.5 mm	40	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.8-44	FR4 Epoxy Glass	43.18 mm	1.7 "	43.18 mm	1.7 "	0.062 in	0.0625 in	1.57 mm	44	0.8 mm	0.031 in	SMD to DIP	QFP
Aries Electronics LCQT-QFP0.65-64	FR4 Epoxy Glass	38.1 mm	1.5 in	38.1 mm	1.5 in	0.062 in	0.0625 in	1.57 mm	64	0.65 mm	0.026 in	SMD to DIP	QFP
