LCQT-QFP0.8-64

Active

Aries Electronics

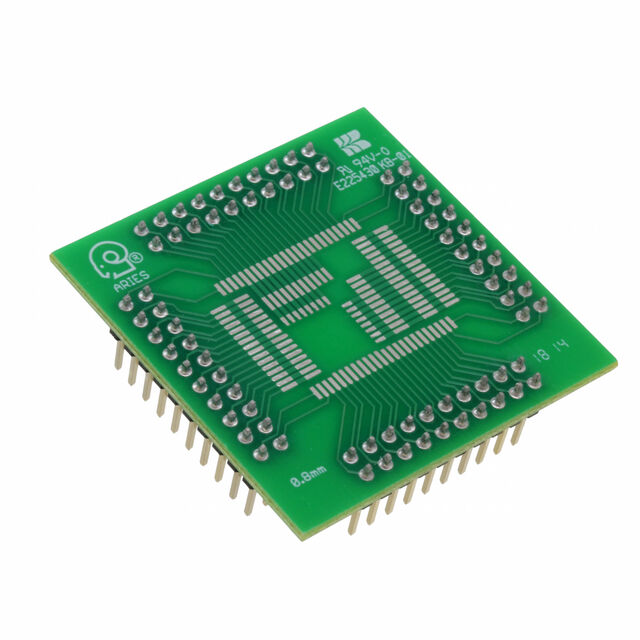

SOCKET ADAPTER MULT PKG TO 64QFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LCQT-QFP0.8-64

Active

Aries Electronics

SOCKET ADAPTER MULT PKG TO 64QFP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LCQT-QFP0.8-64	LCQT-QF Series

Board Material	-	FR4 Epoxy Glass
Board Thickness	0.062 in	0.062 in
Board Thickness	0.0625 in	0.0625 in
Board Thickness	1.57 mm	1.57 mm
Contact Finish - Post	-	Gold
Contact Finish Thickness - Post	-	Flash
Contact Material - Post	-	Brass
Convert From (Adapter End)	-	Multiple Packages
Convert To (Adapter End)	-	QFP
Housing Material	-	Polyester
Material	FR4 Epoxy Glass	FR4 Epoxy Glass
Material Flammability Rating	-	UL94 V-0
Mounting Type	-	Through Hole
Number of Pins	-	32 - 80 pins
Number of Positions	64	44 - 64
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Package Accepted	QFP	QFP
Pitch - Mating	-	0.02 - 0.031 in
Pitch - Mating	-	0.5 - 0.8 mm
Pitch - Post	-	2.54 mm
Pitch - Post	-	0.1 in
Pitch [x]	0.8 mm	0.5 - 0.8 mm
Pitch [x]	0.031 in	0.02 - 0.031 in
Proto Board Type	SMD to DIP	SMD to DIP
Size / Dimension [x]	43.18 mm	38.1 - 43.18 mm
Size / Dimension [x]	1.7 "	1.5 - 1.7 "
Size / Dimension [y]	43.18 mm	38.1 - 43.18 mm
Size / Dimension [y]	1.7 "	1.5 - 1.7 "
Termination	-	Solder
Termination Post Length	-	0.236 in
Termination Post Length	-	6 mm

LCQT-QF Series

SOCKET ADAPTER MULT PKG TO 64QFP

Part	Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Board Thickness	Board Thickness	Board Thickness	Number of Positions	Pitch [x]	Pitch [x]	Proto Board Type	Package Accepted	Pitch - Post	Pitch - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Post [custom]	Material Flammability Rating	Termination Post Length [x]	Termination Post Length [x]	Convert To (Adapter End)	Board Material	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Number of Pins	Mounting Type	Contact Finish - Post	Convert From (Adapter End)	Housing Material	Termination
Aries Electronics LCQT-QFP0.8-64	FR4 Epoxy Glass	43.18 mm	1.7 "	43.18 mm	1.7 "	0.062 in	0.0625 in	1.57 mm	64	0.8 mm	0.031 in	SMD to DIP	QFP
Aries Electronics LCQT-QFP0.5-60														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.02 in	0.5 mm	60 pins	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.65-52														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.026 in	0.65 mm	52	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.8-80														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.031 in	0.8 mm	80	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.65-80														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.026 in	0.65 mm	80	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.5-80														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.02 in	0.5 mm	80	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.5-40-1														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.02 in	0.5 mm	40	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.5-40														2.54 mm	0.1 in	-55 °C	125 °C	Brass	UL94 V-0	0.236 in	6 mm	QFP	FR4 Epoxy Glass	Flash	0.02 in	0.5 mm	40	Through Hole	Gold	Multiple Packages	Polyester	Solder
Aries Electronics LCQT-QFP0.8-44	FR4 Epoxy Glass	43.18 mm	1.7 "	43.18 mm	1.7 "	0.062 in	0.0625 in	1.57 mm	44	0.8 mm	0.031 in	SMD to DIP	QFP
Aries Electronics LCQT-QFP0.65-64	FR4 Epoxy Glass	38.1 mm	1.5 in	38.1 mm	1.5 in	0.062 in	0.0625 in	1.57 mm	64	0.65 mm	0.026 in	SMD to DIP	QFP
