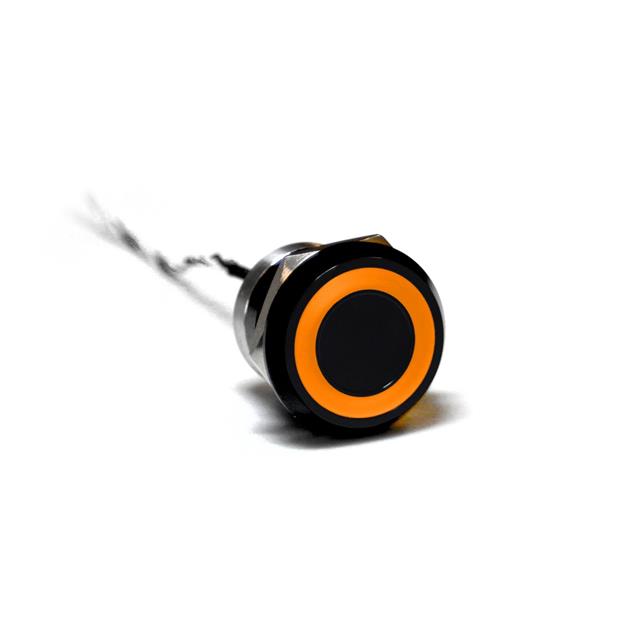

MC25MOBAM

Active

BULGIN LIMITED

SWITCH CAPACITIVE DPST OFF-MOM

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH CAPACITIVE DPST OFF-MOM

Technical Specifications

Parameters and characteristics for this part

Specification	MC25MOBAM

Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	500 mA
Electrical Life	50000000 Cycles
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP68, IP69K
Mechanical Life	50000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	25.2 mm
Switch Function	Off-Mom
Termination Style	Wire Leads
Type	Capacitive, Illuminated
Voltage Rating - DC	24 V

Part	Circuit	Switch Function	Mounting Type	Mechanical Life	Ingress Protection	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Actuator Type	Termination Style	Illumination Type, Color	Current Rating (Amps)	Voltage Rating - DC	Electrical Life	Actuator Marking	Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)
BULGIN LIMITED MC25MOBRG	SPST-NO	Off-Mom	Panel Mount Front	50000000 Cycles	IP68 IP69K	25.2 mm	Black	Button Flush Round	Wire Leads	Green/Red LED	500 mA	12 V	50000000 Cycles	No Marking	Capacitive Illuminated	55 °C	-25 °C
BULGIN LIMITED MC25MOBAM	SPST-NO	Off-Mom	Panel Mount Front	50000000 Cycles	IP68 IP69K	25.2 mm	Black	Button Flush Round	Wire Leads	Amber LED	500 mA	24 V	50000000 Cycles		Capacitive Illuminated	55 °C	-25 °C	12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 55.66
LCSC	Piece	1	$ 17.48

General part information

Pushbutton Switch SPST-NO Capacitive, Illuminated Panel Mount, Front
