Q-0D03S0005002M

Active

Amphenol Custom Cable

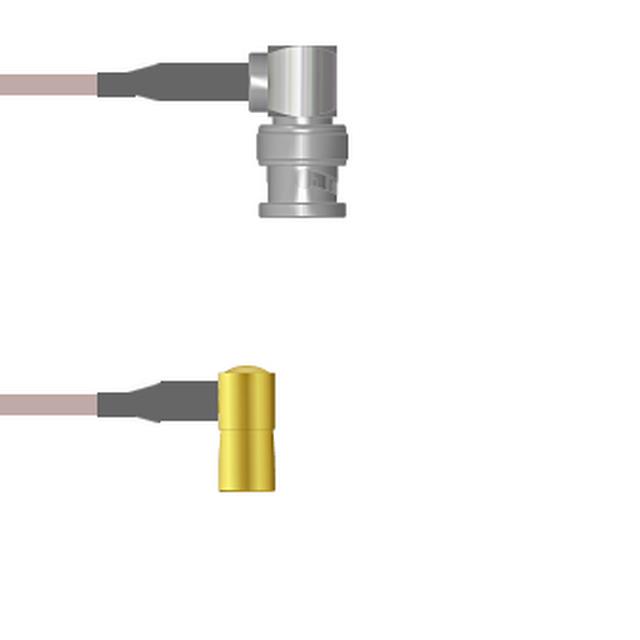

COAX CBL BNC TO SMB 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D03S0005002M

Active

Amphenol Custom Cable

COAX CBL BNC TO SMB 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D03S0005002M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0D03S0 Series

Part	Cable Type	Features	1st Contact Gender	2nd Connector Mounting Type	Frequency - Max [Max]	Style	2nd Connector	Length [x]	Length [x]	Overall Impedance	Color	1st Connector Mounting Type	1st Connector	2nd Contact Gender	Length	Length	Length [x]	Length
Amphenol Custom Cable Q-0D03S0005018i	RG-316	Shielded	Male	Free Hanging (In-Line)	4 GHz	BNC to SMB	SMB Plug Right Angle	457.2 mm	457.2 mm	50 Ohms	Copper	Free Hanging (In-Line)	BNC Plug Right Angle	Male
Amphenol Custom Cable Q-0D03S0003003i	RG-174	Shielded	Male	Free Hanging (In-Line)	4 GHz	BNC to SMB	SMB Plug Right Angle			50 Ohms	Black	Free Hanging (In-Line)	BNC Plug Right Angle	Male	3 in	76.2 mm
Amphenol Custom Cable Q-0D03S00030.5M	RG-174	Shielded	Male	Free Hanging (In-Line)	4 GHz	BNC to SMB	SMB Plug Right Angle			50 Ohms	Black	Free Hanging (In-Line)	BNC Plug Right Angle	Male	19.69 "	50 cm
Amphenol Custom Cable Q-0D03S0003012i	RG-174	Shielded	Male	Free Hanging (In-Line)	4 GHz	BNC to SMB	SMB Plug Right Angle			50 Ohms	Black	Free Hanging (In-Line)	BNC Plug Right Angle	Male	12 "	304.8 mm
Amphenol Custom Cable Q-0D03S0005.25M	RG-316	Shielded	Male	Free Hanging (In-Line)	4 GHz	BNC to SMB	SMB Plug Right Angle		250 mm	50 Ohms	Copper	Free Hanging (In-Line)	BNC Plug Right Angle	Male			9.843 "
Amphenol Custom Cable Q-0D03S0005002M	RG-316	Shielded	Male	Free Hanging (In-Line)	4 GHz	BNC to SMB	SMB Plug Right Angle			50 Ohms	Copper	Free Hanging (In-Line)	BNC Plug Right Angle	Male	78.7 in	2 m		6.6 ft
Amphenol Custom Cable Q-0D03S0003006i	RG-174	Shielded	Male	Free Hanging (In-Line)	4 GHz	BNC to SMB	SMB Plug Right Angle			50 Ohms	Black	Free Hanging (In-Line)	BNC Plug Right Angle	Male	6 in	152.4 mm
Amphenol Custom Cable Q-0D03S0003002M	RG-174	Shielded	Male	Free Hanging (In-Line)	4 GHz	BNC to SMB	SMB Plug Right Angle			50 Ohms	Black	Free Hanging (In-Line)	BNC Plug Right Angle	Male	78.7 in	2 m		6.6 ft
Amphenol Custom Cable Q-0D03S0003001M	RG-174	Shielded	Male	Free Hanging (In-Line)	4 GHz	BNC to SMB	SMB Plug Right Angle			50 Ohms	Black	Free Hanging (In-Line)	BNC Plug Right Angle	Male	39.4 in	1 m		3.3 ft
Amphenol Custom Cable Q-0D03S0003.25M	RG-174	Shielded	Male	Free Hanging (In-Line)	4 GHz	BNC to SMB	SMB Plug Right Angle		250 mm	50 Ohms	Black	Free Hanging (In-Line)	BNC Plug Right Angle	Male			9.843 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 142.24
		25	$ 139.46
		50	$ 136.68
		100	$ 133.90
		250	$ 131.12

Description

General part information

Q-0D03S0 Series

Cable Assembly Coaxial BNC to SMB RG-316 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
