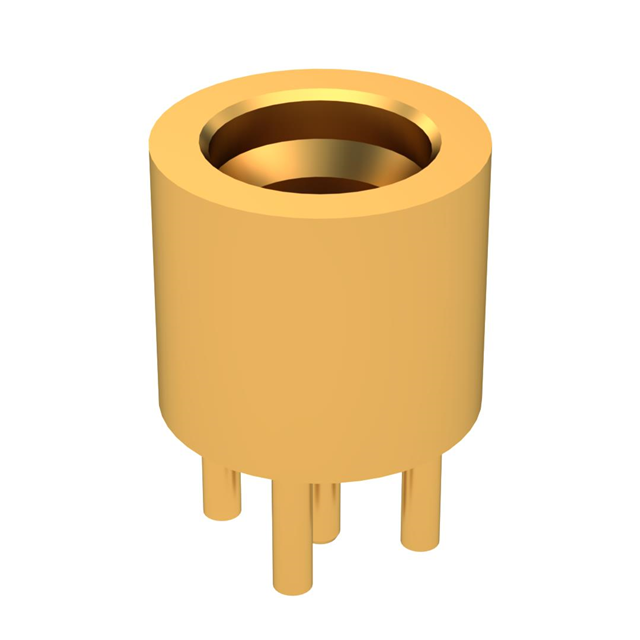

Specification	R222426000

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMP
Connector Type	Receptacle, Male Pin
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Full Detent
Frequency - Max	12 Gbps
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	100 cycles
Mounting Type	Panel Mount, Through Hole
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	335 V

R22242 Series

Part	Connector Type	Features	Mounting Type	Shield Termination	Contact Termination	Number of Ports	Impedance	Center Contact Material	Housing Color	Fastening Type	Frequency - Max	Connector Style	Center Contact Plating	Mating Cycles	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Body Finish	Voltage Rating	Body Material
Radiall USA, Inc. R222428300	Male Pin Receptacle	Limited Detent	Through Hole	Solder	Solder	1	50 Ohm	Beryllium Copper	Gold	Snap-On	18 GHz	SMP	Gold	500 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	335 V	Brass Stainless Steel
Radiall USA, Inc. R222426720W	Male Pin Receptacle	Smooth Bore	Through Hole	Solder	Solder	1	50 Ohm	Beryllium Copper	Gold	Snap-On	40 Gbps	SMP	Gold	1000 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	335 V	Stainless Steel
Radiall USA, Inc. R222426720	Male Pin Receptacle	Smooth Bore	Through Hole	Solder	Solder	1	50 Ohm	Beryllium Copper	Gold	Snap-On	40 Gbps	SMP	Gold	1000 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	335 V	Stainless Steel
Radiall USA, Inc. R222428700W	Male Pin Receptacle	Smooth Bore	Through Hole	Solder	Solder	1	50 Ohm	Beryllium Copper	Gold Silver	Snap-On	40 Gbps	SMP	Gold	1000 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	335 V	Brass Stainless Steel
Radiall USA, Inc. R222426000	Male Pin Receptacle	Full Detent	Panel Mount Through Hole	Solder	Solder	1	50 Ohm	Beryllium Copper	Gold	Snap-On	12 Gbps	SMP	Gold	100 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	335 V	Stainless Steel
Radiall USA, Inc. R222428700	Male Pin Receptacle	Smooth Bore	Through Hole	Solder	Solder	1	50 Ohm	Beryllium Copper	Gold Silver	Snap-On	40 Gbps	SMP	Gold	100 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	250 V	Brass Stainless Steel
Radiall USA, Inc. R222426020W	Male Pin Receptacle	Full Detent	Through Hole	Solder	Solder	1	50 Ohm	Beryllium Copper	Gold	Snap-On	40 Gbps	SMP	Gold	100 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	335 V	Stainless Steel
Radiall USA, Inc. R222428300W	Male Pin Receptacle	Limited Detent	Through Hole	Solder	Solder	1	50 Ohm	Beryllium Copper	Gold Silver	Snap-On	40 Gbps	SMP	Gold	500 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	335 V	Brass Stainless Steel
Radiall USA, Inc. R222428000	Male Pin Receptacle	Full Detent	Through Hole	Solder	Solder	1	50 Ohm	Beryllium Copper	Gold	Snap-On	18 GHz	SMP	Gold	100 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	335 V	Brass Stainless Steel
Radiall USA, Inc. R222426300	Male Pin Receptacle	Limited Detent	Panel Mount Through Hole	Solder	Solder	1	50 Ohm	Beryllium Copper	Gold	Snap-On	12 Gbps	SMP	Gold	500 cycles	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	335 V	Stainless Steel
