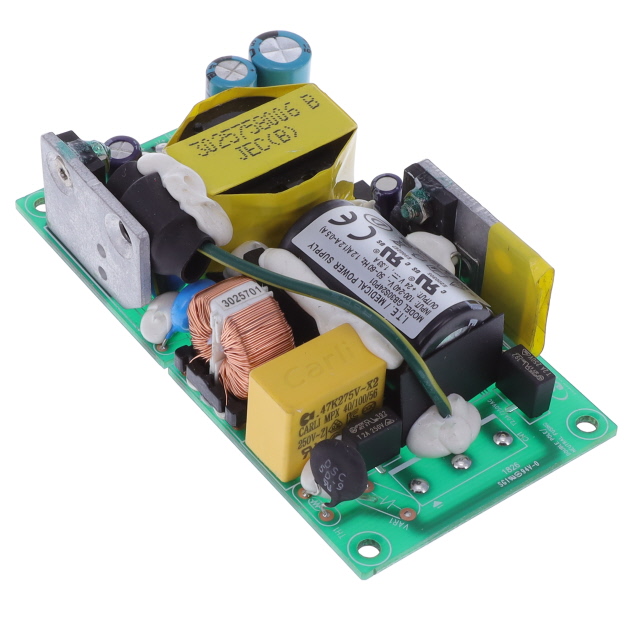

GB30S24P01

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 32W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 32W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 24V 32W

Part	Voltage - Isolation	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Number of Outputs	Features	Mounting Type	Type	Efficiency	Minimum Load Required	Size / Dimension [z]	Size / Dimension [y]
SL POWER / Advanced Energy GB30S24P01	4000 V	24 V	90 VAC	264 VAC	ITE (Commercial), Medical	CE, cURus, DEMKO	48 mm	20.9 mm	0.82 in	91.9 mm	1.89 in	3.62 in	32 W	1.33 A	-25 °C	70 °C	60601-1, 62368-1	1	Universal Input	Chassis Mount	Open Frame	88 %
SL POWER / Advanced Energy GB30S24K01	4000 V	24 V	100 VAC	240 VAC	ITE (Commercial), Medical	CE, cURus, UL			1 "	101.6 mm	48.26 mm	4 in	32 W	1.33 A	-25 °C	70 °C		1	Universal Input	Chassis Mount	Open Frame	88 %		25.4 mm	48.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 10.16

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input

Technical documentation and resources
